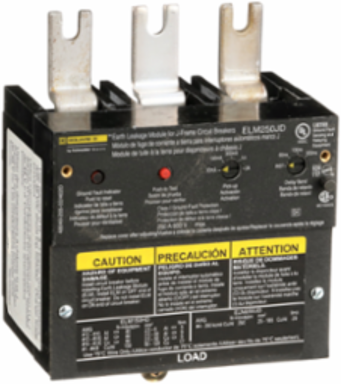

Square D ELM250JD Earth Leakage Module 150-250A, UL Certified, Instantaneous Protection
- MPN: ELM250JD
- UPC: 785901684749
- PPN: SCH-ELM250JD
- UNSPSC: 39121613
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Earth Leakage Module (ELM) is an add on module which provides low level ground fault sensing and relay functions. The add on ELM module features adjustable ground fault pickup levels as low as 30mA and adjustable ground fault delays from instantaneous to 500ms. It has an integral ground fault push-to-test feature. All ELMs are supplied for I-Line mounting and are convertible to unit mount by removing the I-Line mounting feet. A 48VDC shunt trip is required in the circuit breaker, either field or factory installed. This module has a rated operational voltage of 240 to 600VAC and current of 150 to 250A. The module complies with UL and CSA standards. The product comes as UL 1053 – Ground-fault Sensing and Relaying Equipment.
Features

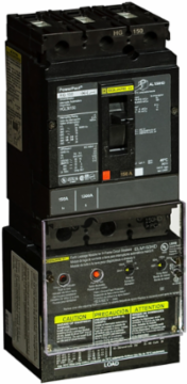

- The Earth leakage module is an add-on module for PowerPact J circuit breake, rated as 150 to 250A
- ELMs are highly sensitive (30 mA to 3 A) and they provide much greater protection than GFMs (20 to 200 A sensitivity).
- ELM fits in LA enclosure, I-line switch board and used with JD, JG, JJ, JL
- At 250 A the ELM250JD can be used with 80% rated circuit breakers only
- Dual interlock prevents cover from being opened (switch is ON)/prevents the switch from being turned ON (cover is open)
- Horsepower rated for motor applications as 60 hp
- Quick-make, quick-break operating mechanism.
- Suitable for use as service entrance equipment
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed, Seismically Qualified to the 2010 ASCE 7, 2012 IBC, 2013 CBC.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Complementary Attributes
| Line Rated Current | 150-250 A |
|---|
| Ue Rated Operational Voltage | 240...600 V |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Circuit Breaker Type | JL, JJ, JD, JG |
| Earth Leakage Sensitivity | 30 mA, 3000 mA, 1000 mA, 300 mA, 100 mA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Network Type | AC |
| Product Or Component Type | earth leakage add-on block |
| Returnability | Yes |
| Tightening Torque | 25.8-25.8 N.m 25-185 mm² (4 AWG...350 kcmil) |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA |
| Earth Leakage Protection Time Delay | instantaneous, 500 ms |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Electrical Connection To Mcb | plug in |
| Local Signalling | trip indicator |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PowerPact |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Customs Code | 8536200020 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Packaging Made With Recycled Cardboard | Yes |
| Take Back | No |
|---|---|
| Eu Rohs Directive | Not compliant |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | earth leakage add-on block |
|---|
| Range Of Product | PowerPact |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
