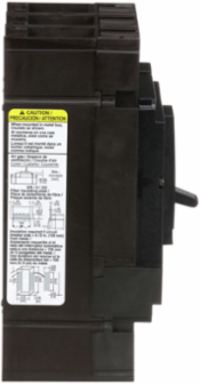

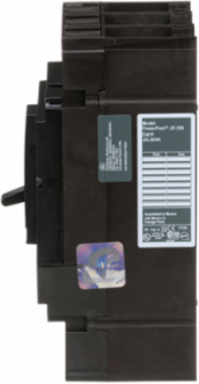

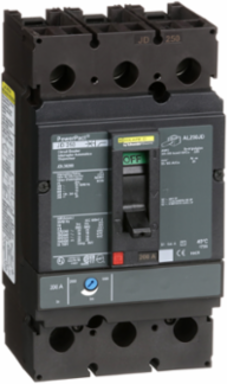

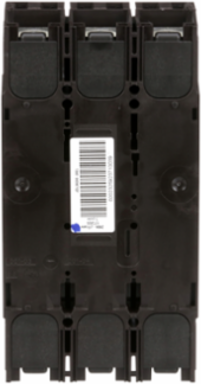

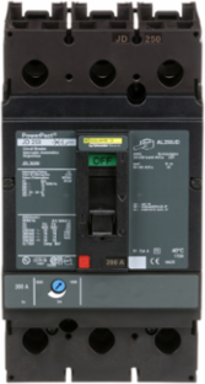

Square D JDL36200 PowerPact J Circuit Breaker 200A 3-Pole 600V AC 14kA
- MPN: JDL36200
- UPC: 785901955856
- PPN: SCH-JDL36200
- UNSPSC: 39121601
CAD
$3468.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Engineered with a space-saving PowerPacT J-Frame blueprint, this unit-mount circuit breaker integrates smoothly into standard mechanical control cabinets and distribution enclosures. Its compact design optimizes limited panel space while preserving native mounting footprints, allowing facility managers and panel builders to seamlessly complete drop-in upgrades or code-compliant retrofits without modifying physical busbars.
- Utilizing a precise 200-Amp thermal-magnetic trip unit, this 3-pole breaker acts as a robust firewall for high-draw commercial motors and manufacturing infrastructure. The thermal component features a long-time pick-up range to handle safe, momentary startup currents, while the magnetic element delivers instantaneous protection during high-current short circuits, preserving costly equipment from winding failure or permanent heat damage.
- Rated for broad global power systems, this breaker boasts a dedicated "D" interrupting code that safely clears faults up to 25 kA at 240V AC, 18 kA at 480V AC, and 14 kA at 600V AC. This dynamic multi-voltage tolerance permits an identical breaker model to handle different application parameters across your facility, standardizing your spare inventory and reducing procurement confusion for maintenance teams.
- Shipped out of the box with heavy-duty mechanical lugs on both the line and load sides, the assembly supports safe, low-resistance connections for large 3/0 AWG to 350 kcmil aluminum or copper building wires. Designed for a stringent tightening torque of 221.3 lbf.in, these premium connections guarantee structural stability against thermal expansion and persistent industrial vibrations, eliminating dangerous loose-wire arcing hazards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada |
|---|---|
| Depth | 86 mm |
| Weight | 2177 g |
|---|
Communications & Management Attributes
| Communication Interface | Modbus, Ethernet |
|---|
Physical Attributes
| Wire Stripping Length | 25 mm |
|---|
Complementary Attributes
| Ics Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2 |
|---|---|
| Ue Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| Uimp Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Line Rated Current | 200-200 A |
|---|---|
| Ui Rated Insulation Voltage | 750 V IEC 60947-2 |
| Long Time Pick Up Adjustment Range | 0.25...1 x In |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | lugs, line, lugs, load |
| Protection Type | overload protection, short-circuit protection |
| Carbon Footprint Of The Distribution Phase A4 | 0.6291259892554583, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.009264660254656288, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 455 kg CO2 eq., 455.1942902416408 |
| Local Publishable Date | 2026-03-25 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 3/0 AWG...350 kcmil aluminium/copper terminals |
| Continuous Current Rating | 80 % |
| Device Application | distribution |
| Local Signalling | switched off (OFF) 1 trip indicator green) |
| Magnetic Tripping Current | 2000-2000 A |
| Mounting Support | lug |
| Number Of Poles | 3P |
| Product Name | PowerPact J |
| Quality Labels | CE |
| Returnability | Yes |
| Suitability For Isolation | yes IEC 60947-2 |
| Terminal Identifier | AL250JD |
| Total Lifecycle Carbon Footprint | 472 kg CO2 eq. |
| Utilisation Category | category A |
| Database Version | 2024-01 |
| Height Nominal | 191 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Number Of Slots | 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in) |
| Certificate Agency | UL, CSA, NOM |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 4 kg CO2 eq., 3.7135292133674214 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 12 kg CO2 eq., 12.263524870856871 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2206031_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2539 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Control Type | toggle |
| Energy Efficiency Optimized | False |
| Magnetic Hold Current | 1000 A |
| Mounting Mode | unit mount lug) |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Software Version | v6.2.4 |
| Sustainable Packaging | No |
| Tightening Torque | 25-25 N.m 95-185 mm² (3/0 AWG...350 kcmil) |
| Trip Unit Technology | thermal-magnetic |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 104 mm |
| Customs Code | 8536200020 |
| Functional Unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 51 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2206031_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-05-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 471.80973497537514 |
| Environmental Disclosure | ENVPEP2206031EN |
| Ip Degree Of Protection | front cover IP40 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2206031EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
