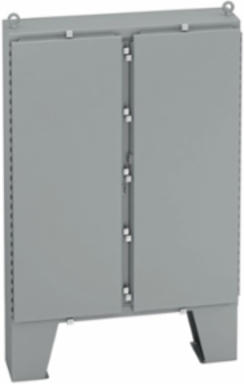

B-Line 746012-4FD Ground Mounted Panel Enclosure, 74 Inch Height, 60 Inch Width, NEMA 4, Carbon Steel
- MPN: 746012-4FD
- UPC: 782051020397
- PPN: B-L-746012-4FD
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton B-Line series ground mounted panel enclosure, 74" height, 12" length, 60" width, NEMA 4, Hinged cover, 4FD enclosure, Ground mount, Large double door, Ground mount legs, Carbon steel, Seamless poured in-place gasket
Features
- Stainless door clamps
Specifications
Key Specifications
| Length | 12 in |
|---|---|
| Width | 60 in |
| Product Type | Type 4 panel enclosures |
| Wall thickness | 12 gauge |
| Color | ANSI 61 gray |
| Model | 4FD enclosure |
| Mounting method | Ground |
| Locking provisions | Padlock provision |
| Country of Origin | United States |
| Height | 74 in |
|---|---|
| Weight | 613.6 lbs |
| Material | Carbon steel |
| Finish color | Painted |
| Style | Large double door |
| Cover type | Hinged |
| Mounting hole details | Ground mount legs |
| NEMA Rating | 4 |
