Bussmann

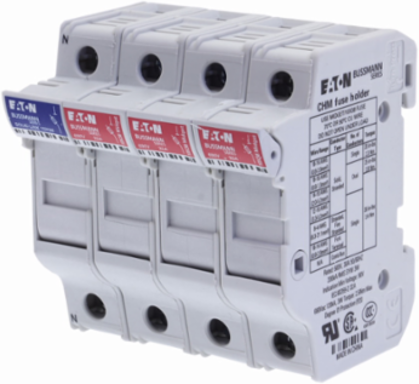

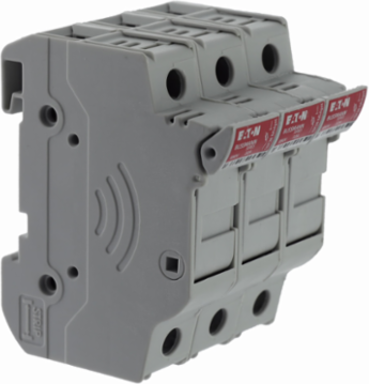

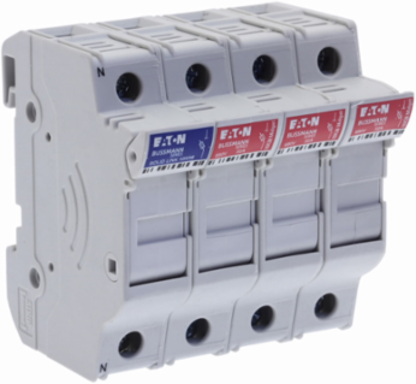

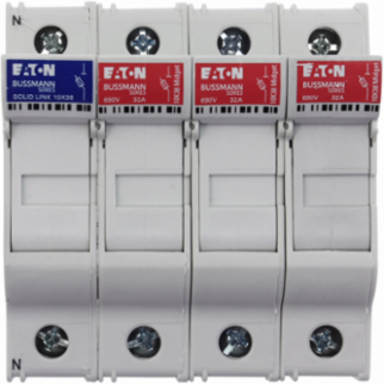

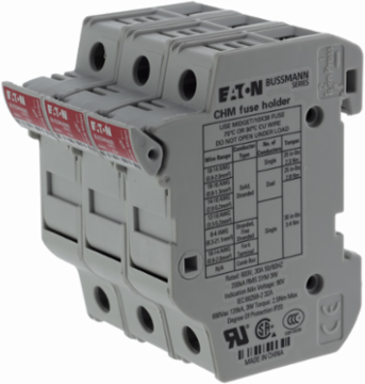

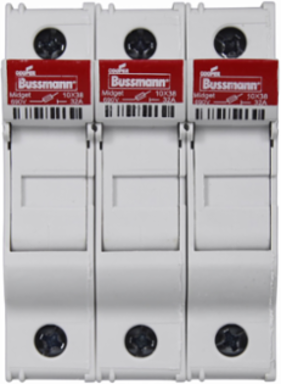

Bussmann CHM3DNU Modular Fuse Holder 600V 30A Three-Pole 200 kAIC

Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
Modular Fuse Holder 600V 30A Three-Pole 200 kAIC
  • MPN: CHM3DNU
  • UPC: 051712362634
  • PPN: BUS-CHM3DNU

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$98.53/ EA

Description

Modular Fuse Holder 600V 30A Three-Pole 200 kAIC

Specifications

Electrical Rating

Amperage Rating
30A (UL), 32A (IEC)
Voltage rating
600 V (UL), 690 V (IEC)
Interrupt rating200 kAIC

Physical Details

Number of Poles
Three-pole
Operating temperature - min
-20 °C
Operating temperature - max120 °C
Wire size#18-4 AWG

General

UPC
051712362634
Product Height
74 mm
Product Weight
.221 kg
Compliances
Contact factory
Product Length/Depth83 mm
Product Width70 mm
WarrantyNot Applicable

General Information

Quantity
3
Used withFor use with CHM 10 mm X 38 mm fuse and Midget fuse
