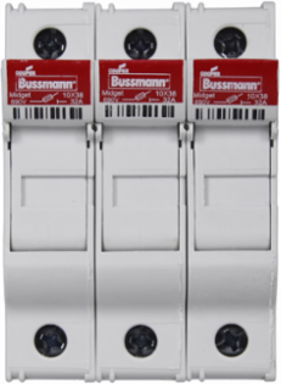

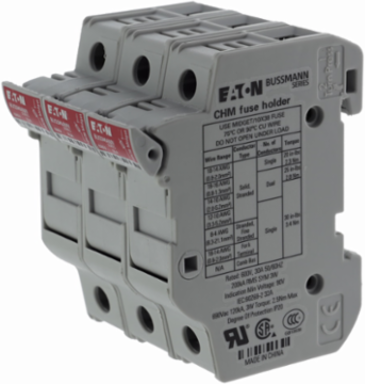

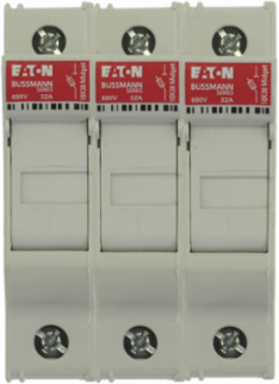

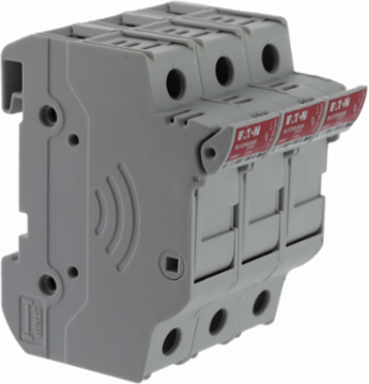

Edison CHM3DU Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Three-pole - CHM3DU
- MPN: CHM3DU
- UPC: 051712362627
- PPN: BUS-CHM3DU
CAD
$87.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 3-pole modular fuse holder allows you to isolate and protect all three phases of your power distribution or motor control circuit simultaneously. Housing three separate poles in a single unified footprint ensures synchronous circuit safety, protecting sensitive heavy equipment from destructive single-phasing electrical faults.
Features
- Built for rigorous electrical environments, this robust block carries full heavy-duty ratings of 30 Amps at 600VAC per UL standards, and up to 32 Amps at 690VAC for IEC compliance. It delivers the precise high-amperage, high-voltage capacity required to safely shield multi-horsepower industrial motors, commercial HVAC setups, and complex automation systems.
- Designed to strict IP20 finger-safe and dead-front compliance parameters, this fuse holder eliminates the risk of accidental shock during routine diagnostic checks or troubleshooting. The fully enclosed thermoplastic housing ensures maintenance personnel can work safely near active power blocks without exposed metal terminals risking direct tools-to-circuit shorts.
- This snap-on module features a universal 35mm DIN-rail mount backing that enables instant, toolless installation onto standard equipment rails. By snapping securely into place without individual drilling or custom layout screws, it dramatically minimizes assembly bench hours and maximizes rail economy inside tight, complex electrical enclosures.
Documentation & Downloads
Specifications
General
- UPC
- 051712362627
- Product Height
- 2.91 in
- Product Weight
- .22 lb
- Compliances
- Contact factory
Product Length/Depth2.7 in
Product Width3.28 in
WarrantyNot Applicable
CertificationsContact Manufacturer
Electrical Rating
- Amperage Rating
- 30A (UL), 32A (IEC)
Voltage rating600 V (UL), 690 V (IEC)
General Information
- Used with
- For use with 10 mm X 38 mm fuse
Physical Details
- Number of Poles
- Three-pole
- Operating temperature - min
- -20 °C
Operating temperature - max120 °C
