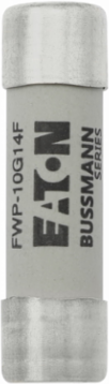

Bussmann FWP-10G14F High Speed Fuse 690V 10A 200 kAIC Non Indicating Ferrule End 14 mm x 51 mm
- MPN: FWP-10G14F
- UPC: 051712689472
- PPN: BUS-FWP-10G14F
CAD
$101.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 690V 10A 200 kAIC Non Indicating Ferrule End 14 mm x 51 mm
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non Indicating |
|---|---|
| Construction size | 14 mm x 51 mm |
| Connection | Ferrule end x ferrule end |
| Amperage Rating | 10 A |
| Utilization category | gR (general purpose semiconductor protection) |
| Type | High speed fuse |
| Breaking capacity | 200 A |
| Pre arc (I2T) | 5.9 |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Packaging type | Standard |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 47 |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Watt losses | 2.52 W |
| Fuse shape | Cylindrical |
| Frequency rating - min | 45 Hz |
| Voltage rating | 690 V |
| Voltage type | AC |
General
| UPC | 051712689472 |
|---|---|
| Product Length/Depth | 51 mm |
| Product Width | 14 mm |
| Warranty | No warranty |
| Certifications | UL Recognized |
| EAN | 5027590500166 |
|---|---|
| Product Height | 14 mm |
| Product Weight | 19.1 g |
| Compliances | CE Marked |
