Bussman

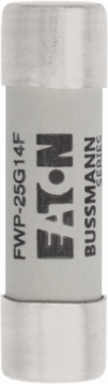

Bussman FWP-25G14F High Speed Fuse 690V 25A 200 kAIC Ferrule End x Ferrule End

High Speed Fuse 690V 25A 200 kAIC Ferrule End x Ferrule End
  • MPN: FWP-25G14F
  • UPC: 051712689519
  • PPN: BUS-FWP-25G14F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$90.63/ EA

Specifications

General

UPC
051712689519
Product Length/Depth
51 mm
Product Width
14 mm
Warranty
No warranty
Certifications
UL Recognized
EAN5027590500524
Product Height14 mm
Product Weight19.1 g
CompliancesCE Marked

Specifications

Fuse indicator
Non Indicating
Construction size
14 mm x 51 mm
Connection
Ferrule end x ferrule end
Amperage Rating
25 A
Utilization category
gR (general purpose semiconductor protection)
Type
High speed fuse
Breaking capacity
200 A
Pre arc (I2T)
53
Application
protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)333
Release characteristicOther
Frequency rating - max62 Hz
Watt losses6 W
Fuse shapeCylindrical
Frequency rating - min45 Hz
Voltage rating690 V
Voltage typeAC
