Bussman

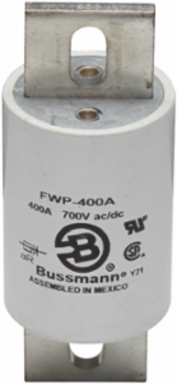

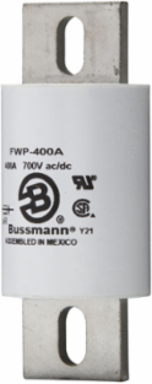

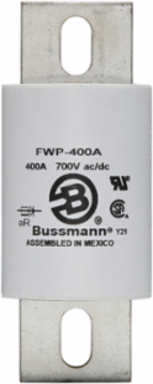

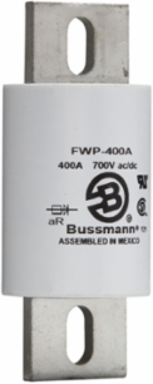

Bussman FWP-400A High Speed Fuse 400A RMS, 2.4 Inch Length, 2.9 Inch Width, 5.4 Inch Height

High Speed Fuse 400A RMS, 2.4 Inch Length, 2.9 Inch Width, 5.4 Inch Height
High Speed Fuse 400A RMS, 2.4 Inch Length, 2.9 Inch Width, 5.4 Inch Height
High Speed Fuse 400A RMS, 2.4 Inch Length, 2.9 Inch Width, 5.4 Inch Height
High Speed Fuse 400A RMS, 2.4 Inch Length, 2.9 Inch Width, 5.4 Inch Height
  • MPN: FWP-400A
  • UPC: 051712150439
  • PPN: BUS-FWP-400A

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$286.85/ EA

Specifications

Specifications

Height
5.4 IN
Width
2.9 IN
Type
North American style
Voltage Rating
1400 Vac (FWS 8-15A), 2100 Vac (FWS 2-6A), 1000 Vdc (FWL/FWS 2-30A)
Interrupt Rating
200 kAIC Vac, 50 kAIC at 700 Vdc
Mounting
Stud
Clearing (I2T)
Clearing at 700V: 125000
Pre Arc (I2T)
31000
Length2.4 IN
Weight1.7 LB
ApplicationDC common bus, DC drives, power converters/rectifiers, reduced voltage starters
Amperage Rating400A RMS
ConnectionBlade end X blade end
Packaging TypeStandard
Fuse IndicatorNon Indicating
Watt Losses78W
