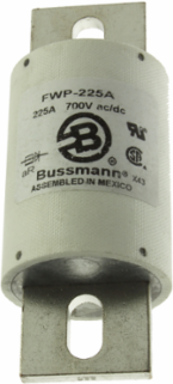

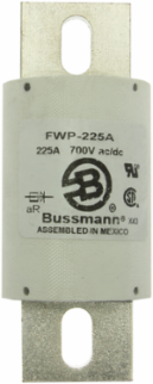

Bussmann FWP-225A High Speed Fuse 225A RMS, 2.4 Inch Length, 5.4 Inch Height, 700 Vac/dc
- MPN: FWP-225A
- UPC: 051712153898
- PPN: BUS-FWP-225A
CAD
$321.12
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 225A RMS, 2.4 Inch Length, 5.4 Inch Height, 700 Vac/dc
Documentation & Downloads
Specifications
Key Specifications
| Height | 5.4 IN |
|---|---|
| Width | 2.9 IN |
| Type | North American style |
| Voltage Rating | 700 Vac/dc |
| Interrupt Rating | 200 kAIC Vac, 50 kAIC at 700 Vdc |
| Mounting | Stud |
| Clearing (I2T) | Clearing at 700V: 31300 |
| Pre Arc (I2T) | 7700 |
| Length | 2.4 IN |
|---|---|
| Weight | 1.7 LB |
| Application | DC common bus, DC drives, power converters/rectifiers, reduced voltage starters |
| Amperage Rating | 225A RMS |
| Connection | Blade end X blade end |
| Packaging Type | Standard |
| Fuse Indicator | Non Indicating |
| Watt Losses | 45W |
