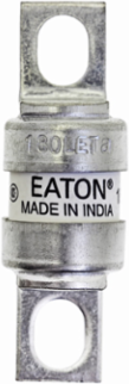

Bussmann 180LET High Speed Fuse 180A, 690 Vac, 500 Vdc, 200 kAIC, Blade end X Blade end
- MPN: 180LET
- UPC: 051712832083
- PPN: BUS-180LET
CAD
$188.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 180A, 690 Vac, 500 Vdc, 200 kAIC, Blade end X Blade end
Specifications
Key Specifications
| Fuse Indicator | None |
|---|---|
| Construction Size | Other |
| Connection | Blade end X blade end |
| Amperage Rating | 180A |
| Watt Losses | 21 |
| Type | Fuse |
| Fuse Shape | offset bolted tags |
| Amperage Rating Numeric | 180 A |
| Voltage Rating | 690 Vac, 500 Vdc |
| Voltage Rating Numeric | 250 V |
| Packaging Type | Standard |
| Interrupt Rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 29000 |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | Other |
| Mounting | Stud |
| Rated switching capacity | 200 KA |
| Breaking Capacity | 200 KA |
| Pre Arc (I2T) | 1600 |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Voltage Type | AC/DC |
General
| UPC | 051712832083 |
|---|---|
| Product Length/Depth | 47 MM |
| Product Width | 8.7 MM |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5027590466134 |
|---|---|
| Product Height | 8.7 MM |
| Product Weight | 32 G |
| Compliances | CE Marked |
