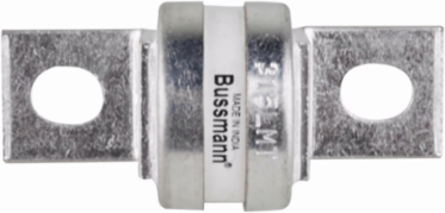

Bussman 315LMT High Speed Fuse 690 Vac, 500 Vdc, 315A, 200 kAIC, 84 MM Length

MPN: 315LMT
UPC: 051712833813
PPN: BUS-315LMT

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$381.98/ EA

Qty:

Loading add to cart quantity...

Specifications

Fuse Indicator: None

Construction Size: Other

Connection: Blade end X blade end

Amperage Rating: 315A

Watt Losses: 35

Type: Fuse

Fuse Shape: offset bolted tags

Amperage Rating Numeric: 315 A

Voltage Rating: 690 Vac, 500 Vdc

Voltage Rating Numeric: 240 V

Packaging Type: Standard

Interrupt Rating200 kAIC

Clearing (I2T)35000

Insulated Metal Gripping Lugs (IMGL)No

Utilization categoryOther

MountingStud

Rated switching capacity200 KA

Breaking Capacity200 KA

Pre Arc (I2T)6000

Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage TypeAC/DC

General

UPC: 051712833813

Product Length/Depth: 84 MM

Product Width: 41.3 MM

Warranty: Not Applicable

Certifications: UL Recognized

EAN5027590476256

Product Height38.1 MM

Product Weight180 G

CompliancesCE Marked
