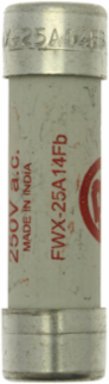

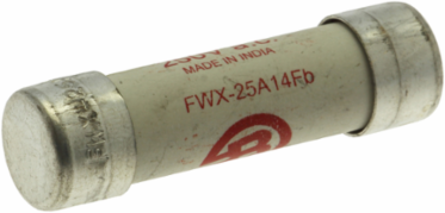

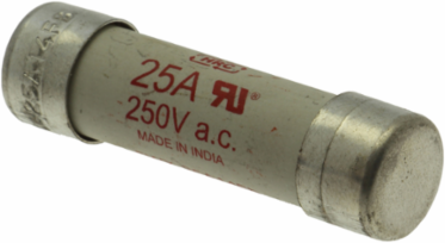

Bussmann FWX-25A14F High Speed Cylindrical Fuse 25A 14x51mm 200A Breaking Capacity
- MPN: FWX-25A14F
- UPC: 051712795593
- PPN: BUS-FWX-25A14F
CAD
$25.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Cylindrical Fuse 25A 14x51mm 200A Breaking Capacity
Specifications
Key Specifications
| Height | 14 MM |
|---|---|
| Width | 14 MM |
| Type | Fuse |
| Voltage Rating | 600V |
| Amperage Rating | 25A |
| Interrupt Rating | 200 kAIC Vac, 50 kAIC at 250 Vdc |
| Construction Size | 14 x 51 mm |
| Breaking Capacity | 200 A |
| Frequency Rating Maximum | 62 HZ |
| Fuse Shape | cylindrical |
| Pre Arc (I2T) | 58 |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 5.3W |
| Length | 51 MM |
|---|---|
| Weight | 21.2 G |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Voltage Rating Numeric | 250 V |
| Amperage Rating Numeric | 25 A |
| Connection | Ferrule end X ferrule end |
| Packaging Type | Standard |
| Clearing (I2T) | Clearing at 250V: 300 |
| Frequency Rating Minimum | 45 HZ |
| Fuse Indicator | Non Indicating |
| Release Characteristic | Other |
| Voltage Type | AC/DC |
| With Striker | No |
