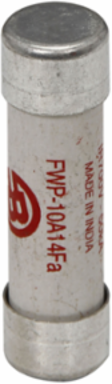

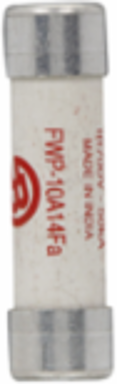

Bussmann FWP-20A14F High Speed Cylindrical Fuse 20A, 14 x 51 mm, 700 Vac, 800 Vdc, 200 kAIC
- MPN: FWP-20A14F
- UPC: 051712795944
- PPN: BUS-FWP-20A14F
CAD
$45.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Cylindrical Fuse 20A, 14 x 51 mm, 700 Vac, 800 Vdc, 200 kAIC
Documentation & Downloads
Specifications
Key Specifications
| Height | 14 MM |
|---|---|
| Width | 14 MM |
| Type | Fuse |
| Voltage Rating | 700 Vac (IEC), 800 Vdc (UL), 690 Vac (IEC) |
| Amperage Rating | 20A |
| Interrupt Rating | 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc |
| Color | White |
| Construction Size | 14 x 51 mm |
| Packaging Type | Standard |
| Quantity | 10 |
| Breaking Capacity | 200 A |
| Frequency Rating Maximum | 62 HZ |
| Fuse Shape | cylindrical |
| Minimum Melting | 26I2t (A2 Sec) |
| Release Characteristic | Other |
| Voltage Type | AC/DC |
| With Striker | No |
| Length | 51 MM |
|---|---|
| Weight | 21.2 G |
| Application | protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Voltage Rating Numeric | 700 V |
| Amperage Rating Numeric | 20 A |
| Class | Class aR |
| Connection | Ferrule end X ferrule end |
| Material Type | Ceramic |
| Diameter | 14 MM |
| Used With | Finger safe holders/blocks and striker |
| Clearing (I2T) | 180 |
| Frequency Rating Minimum | 45 HZ |
| Fuse Indicator | Non Indicating |
| Pre Arc (I2T) | 26 |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 6.5 |
