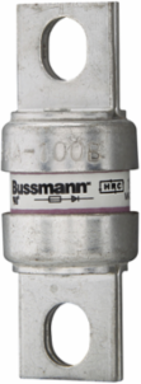

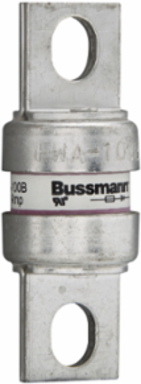

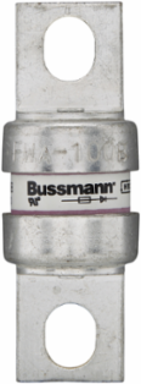

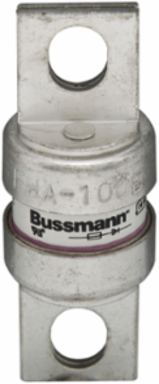

Bussmann FWA-250B Eaton Bussmann series high speed North American fuse

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/4f6fafdc15b7fa5203e78276ba77c3eb12092a0d-medium.png

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/f6a93e9f8a75293a9445eff4bd5f4586f5112df9-medium.png

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/5c3ece255841ee5df9986a439bd6e881375848e7-medium.png

Eaton Bussmann series high speed North American fuse

MPN: FWA-250B
UPC: 051712577847
PPN: BUS-FWA-250B

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$78.78/ EA

Qty:

Loading add to cart quantity...

Description

Eaton Bussmann series high speed North American fuse

Specifications

Height: 25.4 MM

Width: 25.4 MM

Type: Fuse

Voltage Rating: 500 Vac, 500 Vdc

Amperage Rating: 250A

Interrupt Rating: 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A)

Construction Size: Other

Packaging Type: Standard

Fuse Shape: cylindrical with centre-bolted tags

Insulated Metal Gripping Lugs (IMGL): No

Voltage Type: AC/DC

Rated switching capacity: 100 A

Length67 MM

Weight82 G

ApplicationDC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage Rating Numeric150 V

Amperage Rating Numeric250 A

ConnectionBlade end X blade end

MountingStud

Clearing (I2T)70000

Fuse IndicatorNone

Pre Arc (I2T)7470

Watt Losses22.5
