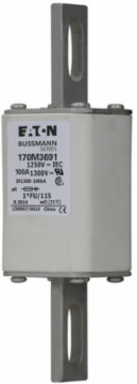

Bussmann 170M3691 High-Speed Square Body Fuse, 100A, 1250V, 100 kAIC, Class aR
- MPN: 170M3691
- UPC: 051712792448
- PPN: BUS-170M3691
CAD
$658.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High-Speed Square Body Fuse, 100A, 1250V, 100 kAIC, Class aR
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- None
- Construction size
- Other
- Insulated metal gripping lugs (IMGL)
- No
- Utilization category
- aR (accompanied semiconductor protection)
- Type
- Fuse
- Class
- Class aR
- Voltage rating
- 1250 V
- Voltage type
- AC
Interrupt rating100 kAIC
Clearing (I2T)4450 at 1000 V, 5950 at 1250 V
Amperage Rating100 A
Watt losses30 W
Fuse shapeSquare body, center bolted tags
Pre arc (I2T)750
Applicationsemiconductor protection
Packaging typeStandard
General
- UPC
- 051712792448
- Product Length/Depth
- 156 mm
- Product Width
- 45 mm
- Warranty
- Not Applicable
- Certifications
- CSA Certified
EAN5027590449281
Product Height59 mm
Product Weight1042.5 g
CompliancesCE Marked
