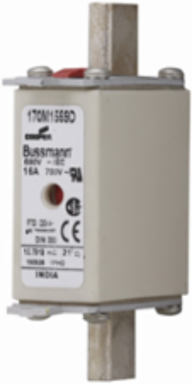

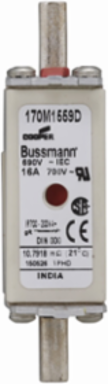

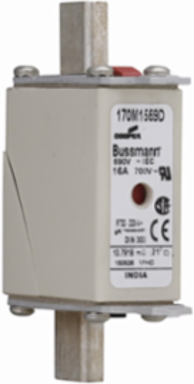

Bussmann 170M1559D Eaton Bussmann series high speed square body fuse, 16A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class gR
- MPN: 170M1559D
- UPC: 051712334631
- PPN: BUS-170M1559D
CAD
$238.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Bussmann series high speed square body fuse, 16A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class gR
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Combination fuse status indicator |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Amperage Rating | 16 A |
| Watt losses | 4 W |
| Fuse shape | Square body, knife blade contacts |
| Pre arc (I2T) | 7 |
| Application | DC common bus, DC drives, power converters/rectifiers, reduced voltage starters |
| Packaging type | Standard |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 51 at 660 V |
| Connection | Din 43-620 blade end x Din 43-620 blade end |
| Utilization category | gR (general purpose semiconductor protection) |
| Type | Fuse |
| Class | Class gR |
| Voltage rating | 690 V |
| Voltage type | AC |
General
| UPC | 051712334631 |
|---|---|
| Product Length/Depth | 79 mm |
| Product Width | 21 mm |
| Warranty | Not Applicable |
| Certifications | IEC Rated |
| EAN | 5027590441193 |
|---|---|
| Product Height | 51 mm |
| Product Weight | 135.6 g |
| Compliances | CE Marked |
