Bussmann

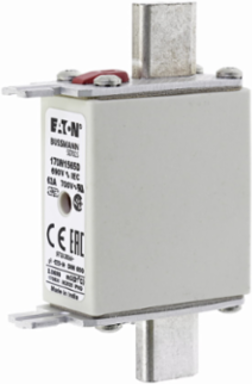

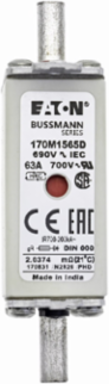

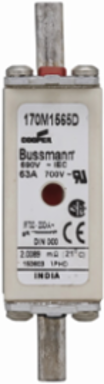

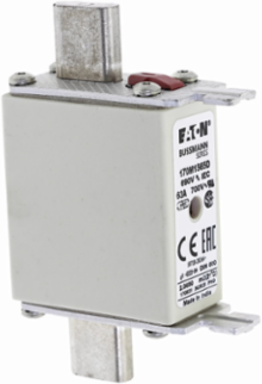

Bussmann 170M1565D High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR

High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR
  • MPN: 170M1565D
  • UPC: 051712334778
  • PPN: BUS-170M1565D

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$247.17/ EA

Description

High Speed Fuse 690V, 63A, 200 kAIC, Square Body, Class gR

Specifications

General

UPC
051712334778
Product Length/Depth
79 mm
Product Width
21 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590441292
Product Height51 mm
Product Weight134.8 g
CompliancesCE Marked

Specifications

Fuse indicator
Combination fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
63 A
Watt losses
11.5 W
Fuse shape
Square body, knife blade contacts
Pre arc (I2T)
215
Application
DC common bus, DC drives, power converters/rectifiers, reduced voltage starters
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)1550 at 660 V
ConnectionDin 43-620 blade end x Din 43-620 blade end
Utilization categorygR (general purpose semiconductor protection)
TypeFuse
ClassClass gR
Voltage rating690 V
Voltage typeAC

Downloads
