Bussman

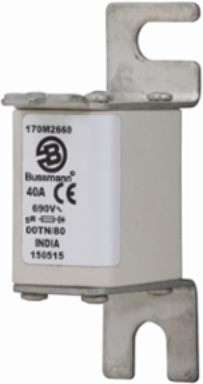

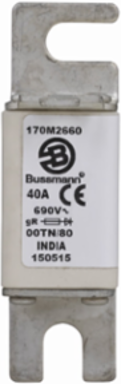

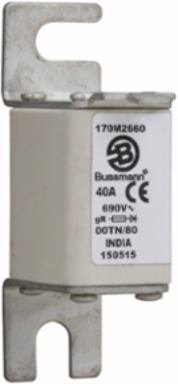

Bussman 170M2660 Eaton Bussmann series high speed square body fuse, 40A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M2660

Eaton Bussmann series high speed square body fuse, 40A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M2660
Eaton Bussmann series high speed square body fuse, 40A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M2660
Eaton Bussmann series high speed square body fuse, 40A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M2660
  • MPN: 170M2660
  • UPC: 051712254205
  • PPN: BUS-170M2660

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$297.35/ EA

Specifications

Specifications

Fuse indicator
Top fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Mounting method
DIN 43 620
Utilization category
gR (general purpose semiconductor protection)
Type
Fuse
Class
Class gR
Voltage rating
690 V
Voltage type
AC
Interrupt rating200 kAIC
Clearing (I2T)360 at 660 V
ConnectionBlade end x blade end
Amperage Rating40 A
Watt losses9 W
Fuse shapeSquare body, slotted offset bolted tags
Pre arc (I2T)50
Applicationsemiconductor protection
Packaging typeStandard

General

UPC
051712254205
Product Length/Depth
233 mm
Product Width
140 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590442367
Product Height66 mm
Product Weight222.5 g
CompliancesCE Marked
