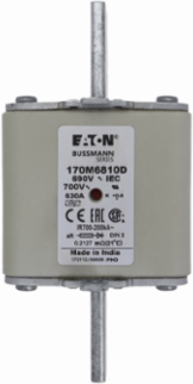

Bussmann 170M6810D High-Speed Square Body Fuse 690V 630A 200 kAIC Class aR
- MPN: 170M6810D
- UPC: 051712335232
- PPN: BUS-170M6810D
CAD
$1105.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-Speed Square Body Fuse 690V 630A 200 kAIC Class aR
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Combination fuse status indicator
- Construction size
- Other
- Insulated metal gripping lugs (IMGL)
- No
- Amperage Rating
- 630 A
- Watt losses
- 45 W
- Fuse shape
- Square body, knife blade contacts
- Pre arc (I2T)
- 31000
- Application
- industrial
- Packaging type
- Standard
Interrupt rating200 kAIC
Clearing (I2T)220000 at 660 V
ConnectionDin 43-620 blade end x Din 43-620 blade end
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating690 V
Voltage typeAC
General
- UPC
- 051712335232
- Product Length/Depth
- 150 mm
- Product Width
- 71 mm
- Warranty
- Not Applicable
- Certifications
- UL Recognized
EAN5027590463232
Product Height87 mm
Product Weight1117 g
CompliancesCE Marked
