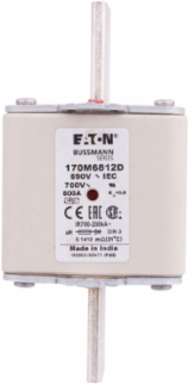

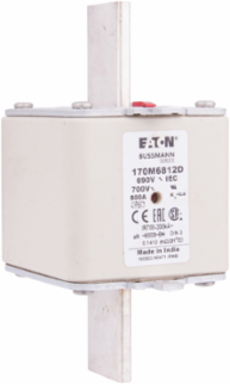

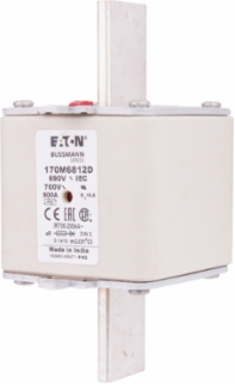

Bussmann 170M6812D High Speed Square Body Fuse 800A 690V 150 MM Length
- MPN: 170M6812D
- UPC: 051712335256
- PPN: BUS-170M6812D
CAD
$1142.50
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 800A 690V 150 MM Length
Documentation & Downloads
Specifications
Key Specifications
| Height | 88 MM |
|---|---|
| Width | 76 MM |
| Type | Fuse |
| Voltage Rating | 690V |
| Amperage Rating | 800A |
| Interrupt Rating | 200 kAIC |
| Connection | Din 43-620 blade end X Din 43-620 blade end |
| Packaging Type | Standard |
| Fuse Shape | square body with knife blade contacts |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 48W |
| Length | 150 MM |
|---|---|
| Weight | 110.8 G |
| Application | industrial |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 800 A |
| Class | Class aR |
| Construction Size | Other |
| Clearing (I2T) | Clearing at 660V: 490000 |
| Fuse Indicator | Combination fuse status indicator |
| Pre Arc (I2T) | 69500 |
| Voltage Type | AC |
