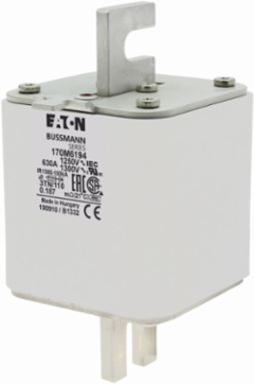

Bussmann 170M6194 High-Speed Square Body Fuse, 630A, 700V (UL), 100 kAIC, Class aR, DIN 43 620
- MPN: 170M6194
- UPC: 051712263245
- PPN: BUS-170M6194
CAD
$1343.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-Speed Square Body Fuse, 630A, 700V (UL), 100 kAIC, Class aR, DIN 43 620
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Other
- Construction size
- Other
- Insulated metal gripping lugs (IMGL)
- No
- Amperage Rating
- 630 A
- Watt losses
- 115 W
- Fuse shape
- Square body, slotted center bolted tags
- Pre arc (I2T)
- 83500
- Application
- semiconductor protection
- Packaging type
- Standard
Interrupt rating100 kAIC
Clearing (I2T)495000 at 1000 V, 665000 at 1250 V
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating1250 V
Voltage typeAC
General
- UPC
- 051712263245
- Product Length/Depth
- 168 mm
- Product Width
- 95 mm
- Warranty
- Not Applicable
- Certifications
- IEC Rated
EAN5996516018187
Product Height76 mm
Product Weight1264 g
CompliancesCE Marked
