Bussmann

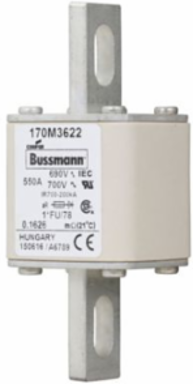

Bussmann 170M3622 Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M3622

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M3622
  • MPN: 170M3622
  • UPC: 051712799119
  • PPN: BUS-170M3622

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$552.35/ EA

Description

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 550A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M3622

Specifications

General

UPC
051712799119
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
IEC Rated
EAN5027590448734
Product Height65 mm
Product Weight319 g
CompliancesCE Marked

Specifications

Fuse indicator
None
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
550 A
Watt losses
75 W
Fuse shape
Square body, center bolted tags
Pre arc (I2T)
34000
Application
semiconductor protection
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)230000 at 660 V
ConnectionBlade end x blade end
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating690 V
Voltage typeAC

Downloads
