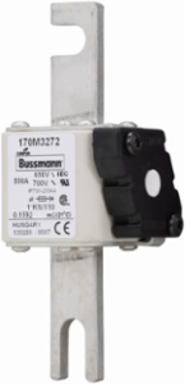

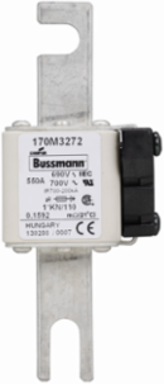

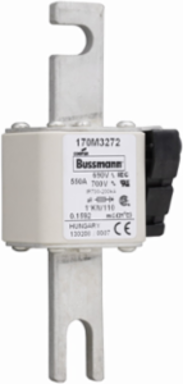

Bussmann 170M3272 High Speed Square Body Fuse 690V, 550A, 200 kAIC, DIN 43 620
- MPN: 170M3272
- UPC: 051712255554
- PPN: BUS-170M3272
CAD
$733.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Speed Square Body Fuse 690V, 550A, 200 kAIC, DIN 43 620
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Other
- Clearing loss
- 75
- Clearing (I2T)
- 230000 at 660 V
- Connection
- Blade end x blade end
- Amperage Rating
- 550 A
- Type
- Fuse
- Class
- Class aR
- Voltage rating
- 690 V
- Voltage type
- AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)34000
Applicationsemiconductor protection
Packaging typeStandard
General
- UPC
- 051712255554
- Product Length/Depth
- 305 mm
- Product Width
- 145 mm
- Warranty
- Not Applicable
- Certifications
- IEC Rated
EAN5027590446853
Product Height65 mm
Product Weight346 g
CompliancesCE Marked
