Bussman

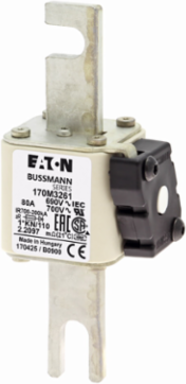

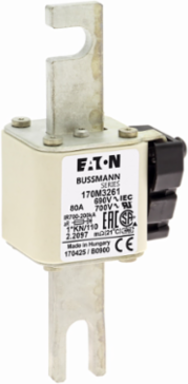

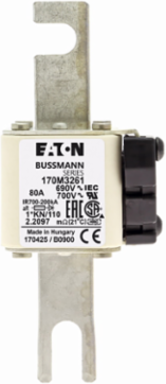

Bussman 170M3261 High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620

High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620
High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620
High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620
High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620
High-Speed Square Body Fuse 80A 690V AC 200 kAIC Class aR DIN 43 620
  • MPN: 170M3261
  • UPC: 051712255455
  • PPN: BUS-170M3261

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$594.77/ EA

Specifications

Specifications

Fuse indicator
Other
Clearing loss
18
Clearing (I2T)
1250 at 660 V
Connection
Blade end x blade end
Amperage Rating
80 A
Type
Fuse
Class
Class aR
Voltage rating
690 V
Voltage type
AC
Interrupt rating200 kAIC
Construction sizeOther
Insulated metal gripping lugs (IMGL)No
Mounting methodDIN 43 620
Utilization categoryaR (accompanied semiconductor protection)
Fuse shapeSquare body, slotted center bolted tags
Pre arc (I2T)185
Applicationsemiconductor protection
Packaging typeStandard

General

UPC
051712255455
Product Length/Depth
305 mm
Product Width
145 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590446662
Product Height65 mm
Product Weight346 g
CompliancesCE Marked
