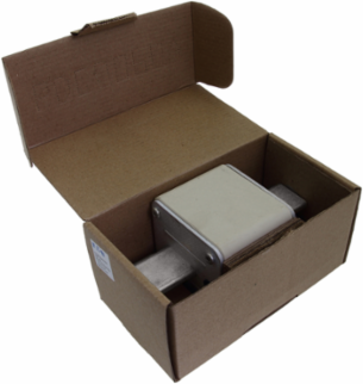

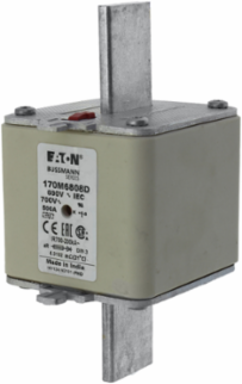

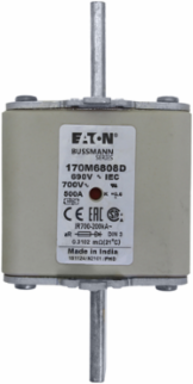

Bussmann 170M6808D High Speed Square Body Fuse 500A 690V 200 kAIC
- MPN: 170M6808D
- UPC: 051712335218
- PPN: BUS-170M6808D
CAD
$1102.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 500A 690V 200 kAIC
Specifications
Key Specifications
| Height | 88 MM |
|---|---|
| Width | 76 MM |
| Type | Fuse |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 500 A |
| Class | Class aR |
| Construction Size | Other |
| Clearing (I2T) | Clearing at 660V: 99500 |
| Fuse Indicator | Combination fuse status indicator |
| Pre Arc (I2T) | 14000 |
| Voltage Type | AC |
| Length | 150 MM |
|---|---|
| Weight | 110.8 G |
| Application | industrial |
| Amperage Rating | 500A |
| Interrupt Rating | 200 kAIC |
| Connection | Din 43-620 blade end X Din 43-620 blade end |
| Packaging Type | Standard |
| Fuse Shape | square body with knife blade contacts |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | aR (accompanied semiconductor protection) |
| Watt Losses | 43W |
