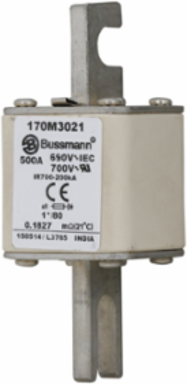

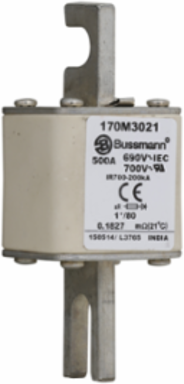

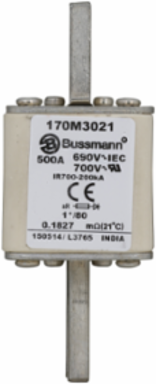

Bussmann 170M3021 High Speed Square Body Fuse 500A 1250V AC - Class aR, 200 kAIC, 104MM Length
- MPN: 170M3021
- UPC: 051712799362
- PPN: BUS-170M3021
CAD
$510.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 500A 1250V AC - Class aR, 200 kAIC, 104MM Length
Documentation & Downloads
Specifications
Key Specifications
- Height
- 58 MM
- Width
- 45 MM
- Type
- Fuse
- Voltage Rating
- 1250V (IEC), 1300V (UL)
- Amperage Rating
- 500A
- Interrupt Rating
- 200 kAIC
- Connection
- Blade end X blade end
- Mounting
- DIN 43 620
- Clearing (I2T)
- Clearing at 660V: 180000
- Fuse Shape
- square body with centre-bolted tags (slotted)
- Insulated Metal Gripping Lugs (IMGL)
- No
- Utilization category
- aR (accompanied semiconductor protection)
Length104 MM
Weight366 G
Applicationsemiconductor protection
Voltage Rating Numeric690 V
Amperage Rating Numeric500 A
ClassClass aR
Construction SizeOther
Packaging TypeStandard
Clearing Loss70
Fuse IndicatorTop fuse status indicator
Pre Arc (I2T)Current pre-arc: 27000
Voltage TypeAC
