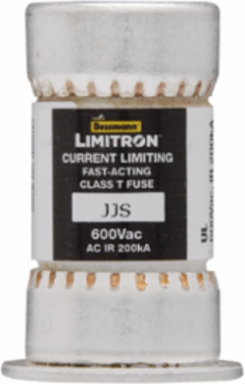

Bussmann JJS-50 Class T Fast Acting Fuse 50A, 200 kAIC at 600V, Ferrule End, Small Footprint
- MPN: JJS-50
- UPC: 051712628501
- PPN: BUS-JJS-50
CAD
$35.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Class T Fast Acting Fuse 50A, 200 kAIC at 600V, Ferrule End, Small Footprint
Features
- Engineered with an advanced current-limiting design, this 50 A Class T fuse delivers up to 10X better current limitation compared to standard code-fuses. It reacts instantly to maximum ground fault and short-circuit conditions, isolating dangerous overcurrents to prevent catastrophic damage to your variable frequency drives (VFDs) and silicon-controlled rectifiers (SCRs).
- Featuring a massive 200 kAIC interrupting rating at 600 VAC, this fuse is fully compliant with NEC Section 110.9 for large capacity electrical mains. It safely clears high-energy faults without rupturing or creating arc hazards, satisfying your strict facility safety requirements and engineering specs.
- With its ultra-compact, space-saving design measuring just 0.81 inches in diameter and 1.56 inches in length, this ferrule-ended cartridge fuse requires significantly less panel space than standard Class R or Class J alternatives. It allows engineers and panel builders to design smaller, more cost-effective control profiles and multi-family meter stacks without sacrificing protection.
- Utilizing a very fast-acting, single-element melamine body construction, it responds within microseconds to sudden voltage spikes and overloads. This rapid-clear speed provides optimal overcurrent protection for non-inductive loads, electric heat circuits, and delicate semiconductor equipment where time-delay fuses are too slow to prevent component failure
Documentation & Downloads
Specifications
Additional
- Amperage
- 50 A
- Voltage
- 600 V
- Connection
- Ferrule end x ferrule end
- Product Length/Depth
- 1.56 in
- Product Height
- .81 in
- Fuse Indicator
- Non-indicating
Interrupting Rating200 kAIC at 600 Vac
Fuse TypeClass T, Fast Acting
SizeSmall footprint
Product Width.81 in
Product Weight.5 lb
ComplianceCE Marked
