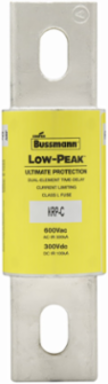

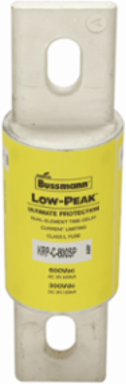

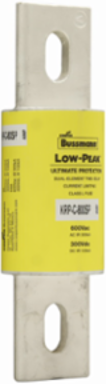

Bussmann KRP-C-700SP Current-Limiting Time-Delay Fuse 700 A, 4 Sec Response, Bolted Blade End
- MPN: KRP-C-700SP
- UPC: 051712605113
- PPN: BUS-KRP-C-700SP
CAD
$1274.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This current-limiting time-delay fuse from Bussmann is engineered to provide robust circuit protection with a 700 A amperage rating and a quick response time of four seconds at 500%. Designed for connection via bolted blade ends, this Class L fuse ensures a reliable fit in power distribution applications while maintaining compliance with RoHS standards. With an impressive interrupt rating of 300 kAIC at 600 Vac, it is built to handle demanding electrical environments effectively, safeguarding your systems from overload and short circuit conditions. Whether for new installations or upgrades, this fuse stands out for its efficiency and reliability in enhancing operational safety.
Features
- This current-limiting Class L fuse is engineered with an industry-leading 300 kAIC interrupting rating at 600 VAC.
- Featuring a minimum 4-second time delay at 500% of its 700-amp rated current, this dual-element fuse effortlessly absorbs temporary inductive inrush currents from large industrial machinery and heavy motor loads. By preventing unnecessary outages, it eliminates costly operational downtime while maintaining instantaneous, millisecond-level clearing during an actual short circuit.
- Built with heavy-duty bolted blade-end terminals and a rugged glass melamine tube, this 2.53-inch by 8.63-inch component integrates directly into standard Class L power panelboards and machinery disconnects. Internal high-grade silica sand filler accelerates arc-quenching velocity, while the robust cartridge design restricts let-through current to reduce the mechanical bus bracing requirements inside your enclosure.
Documentation & Downloads
Specifications
Additional
- Amperage
- 700 A
- Voltage
- 600 Vac, 300 Vdc
- Connection
- Bolted blade end x bolted blade end
- Weight
- 0.001 lb
- Class
- Class L
Interrupt Rating300 kAIC at 600 Vac
Response Time4 sec at 500%
Size8.63 in Length x 2.53 in Width x 2.53 in Height
Fuse IndicatorNon-indicating
ComplianceRoHS Compliant
