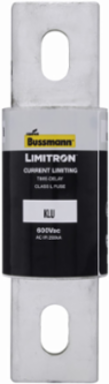

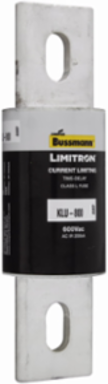

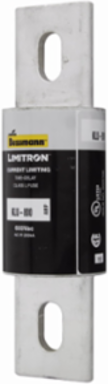

Bussmann KLU-700 LIMITRON Fast-Acting Fuse, 700 A, Class L, 600 V, 200 kAIC, Bolted Blade End
- MPN: KLU-700
- UPC: 051712135047
- PPN: BUS-KLU-700
CAD
$829.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LIMITRON Fast-Acting Fuse, 700 A, Class L, 600 V, 200 kAIC, Bolted Blade End
Features
- Engineered with a robust 700-amp continuous rating at 600V AC, this Class L cartridge fuse is purpose-built for heavy-duty main electrical distribution. It serves as an ultra-reliable line of defense for large industrial machinery disconnects, massive power panelboards, and building service switchboards, ensuring maximum upstream circuit safety.
- Incorporating Bussmann's advanced Limitron™ current-limiting metallurgy, this fuse reacts fast enough under catastrophic fault conditions to isolate high-energy shorts before they reach full peak current. This rapid isolation drastically limits downstream destructive thermal and magnetic forces, effectively protecting sensitive breakers, busbars, and maintenance personnel from catastrophic equipment failure.
- Boasting an exceptional 200,000-amp interrupting capacity, this fuse fully complies with strict NEC® Sections 110.9 and 230.65 requirements for modern high-capacity power systems. This massive breaking threshold guarantees the device will safely extinguish high-voltage faults without exploding, giving facility engineers complete peace of mind during grid spikes.
- Featuring an engineered dual-element architecture that provides a minimum 5-second time delay at 500% of the rated current, this fuse effortlessly absorbs temporary inrush currents from large motors, transformers, and inductive industrial loads. It prevents costly assembly line downtime from unnecessary transient trips while remaining fully responsive to sustained, hazardous overloads.
Documentation & Downloads
Specifications
Additional
- Amperage
- 700 A
- Interrupting Capacity
- 200 kAIC at 600 Vac
- Connection
- Bolted blade end x bolted blade end
- Width
- 2.5 in
- Weight
- 3.75 lb
- Response Time
- 5 sec at 500%
- Compliance
- RoHS Compliant
Voltage600 V
Fuse ClassClass L
Length8.63 in
Height2.5 in
Fuse IndicatorNon-indicating
Mounting MethodBolt
