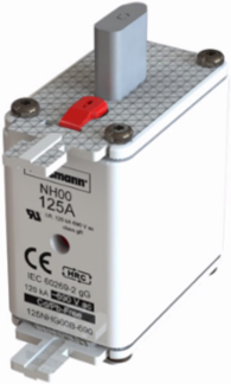

Bussmann 125NHG00B-690 HG00B Low Voltage NH Fuse 690V 125A Square Body with Knife Blade Contacts

MPN: 125NHG00B-690
UPC: 051712294287
PPN: BUS-125NHG00B-690

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$153.62/ EA

Qty:

Loading add to cart quantity...

Description

HG00B Low Voltage NH Fuse 690V 125A Square Body with Knife Blade Contacts

Specifications

Interrupt Rating: 120 kAIC

Amperage Rating: 125A

Fuse Type: Square-body with knife blade contact

Amperage Rating Numeric: 125 A

Protection: IP 00

Special Features: Live gripping lug

Construction: NH00

Quantity: 3 per package

Utilization Category: gL/gG (cable protection/equipment protection)

Type: fuse

Breaking Capacity: 120 KA

Class: Class C gL/gG

Voltage Rating Numeric: 690 V

Packaging Type: Standard

Insulated Metal Gripping Lugs (IMGL)No

Frequency Rating Maximum62 HZ

Rated switching capacity120 KA

Voltage Rating690V

Fuse IndicatorCombination fuse status indicator

Construction SizeNH00

ConnectionBlade end connection

Material TypeCeramic body

Contact MaterialSilver plated copper contact plate

Fuse Shapesquare body with knife blade contacts

Frequency Rating Minimum45 HZ

Applicationindustrial

Voltage TypeAC

General

UPC: 051712294287

Product Length/Depth: 79 MM

Product Width: 30 MM

Warranty: Not Applicable

Certifications: UL Listed

EAN5027590429917

Product Height58 MM

Product Weight216.333 G

CompliancesRoHS Compliant
