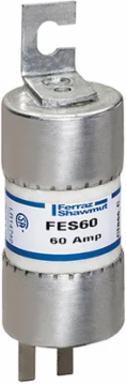

Mersen FES60 Fuse FES – HRC-II 600VAC 460VDC 60A Blade

Fuse FES – HRC-II 600VAC 460VDC 60A Blade
  • MPN: FES60
  • UPC: 068938904067
  • PPN: FER-FES60

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.93/ EA

Description

Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class C
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Type
Blade
Length
3.44 in
Rated voltage DC UL460 V
Ampere Rating60 A
AC or DCAC/DC
MountingBolted
Connection/Terminal MaterialCopper
Body/Insulating MaterialPolyTube
Weight0.171 lb
