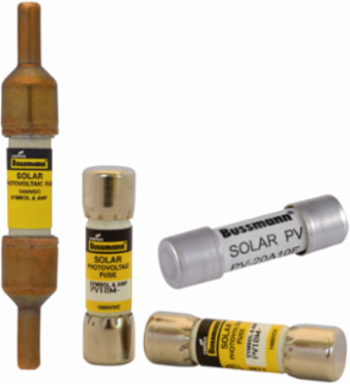

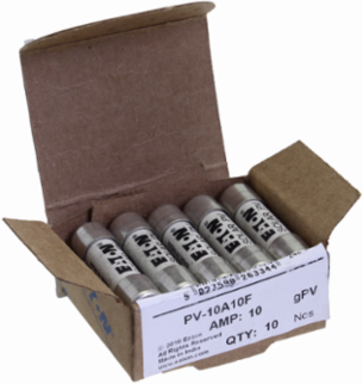

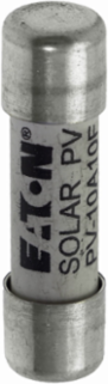

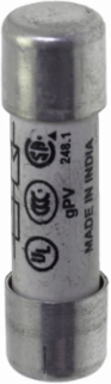

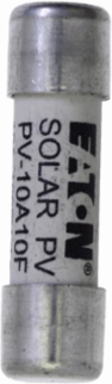

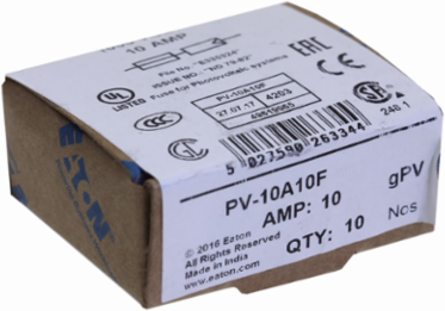

Bussmann PV-10A10F Photovoltaic Fuse, 10A, 1000 Vdc, Cylindrical, Class gPV, Yellow, Ceramic Body
- MPN: PV-10A10F
- UPC: 051712204019
- PPN: BUS-PV-10A10F
CAD
$70.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Photovoltaic Fuse, 10A, 1000 Vdc, Cylindrical, Class gPV, Yellow, Ceramic Body
Specifications
Key Specifications
| Interrupt Rating | 50 kAIC |
|---|---|
| Amperage Rating | 10A |
| Amperage Rating Numeric | 10 A |
| Voltage Rating | 1000 Vdc |
| Total I2T | Total at 1000V: 70 |
| Special Features | 1.3 x In, Time constant: 1-3 ms |
| Color | Yellow |
| Quantity | 10 |
| Watt Losses | 1.2W |
| Type | Fuse |
| Fuse Shape | cylindrical |
| Class | Class gPV |
| Terminal Material | Tin plated Brass |
| Voltage Rating Numeric | 1000 V |
| Packaging Type | Standard |
| Release Characteristic | Other |
|---|---|
| Accessories | BM Series, CHPV, 1A3400 Fuseclips, HPV |
| With Striker | No |
| Diameter | 10 MM |
| Fuse Indicator | Non Indicating |
| Construction Size | 10 x 38 mm |
| Connection | Ferrule end x ferrule end |
| Material Type | Ceramic body |
| Utilization category | Other |
| Used With | BM Series, CHPV, 1A3400 Fuseclips, HPV |
| Breaking Capacity | 50 A |
| Pre Arc (I2T) | 7 |
| Application | Solar panel combiner boxes |
| Voltage Type | DC |
General
| UPC | 051712204019 |
|---|---|
| Product Length/Depth | 38 MM |
| Product Width | 10.4 MM |
| Warranty | Not Applicable |
| Certifications | CSA Certified |
| EAN | 5027590505352 |
|---|---|
| Product Height | 10.4 MM |
| Product Weight | 9.4 G |
| Compliances | RoHS Compliant |
