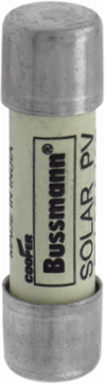

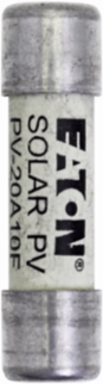

Bussmann PV-20A10F Photovoltaic Fuse 1.5 x In 20A 1000 VDC 50 kAIC Ceramic Body Yellow
- MPN: PV-20A10F
- UPC: 051712358231
- PPN: BUS-PV-20A10F
CAD
$63.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 20A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end
Features
- Engineered specifically for photovoltaic infrastructure, this high-speed gPV class fuse reliably isolates and protects DC system configurations up to 1000Vdc. It delivers dedicated electrical defense for solar panels, combiner boxes, multi-string recombiner units, and utility-scale battery storage banks against hazardous DC faults.
- Featuring a standard midget ferrule-to-ferrule profile measuring 10mm x 38mm, this cartridge fuse offers drop-in physical compatibility with standard commercial solar equipment. It installs seamlessly into industry-standard DIN-rail modular blocks, such as the Bussmann CHPV series, or HPV inline wire harness holders without requiring costly hardware retrofits.
- Boasting an exceptional 50 kAIC interrupting rating, this heavy-duty ceramic fuse is built to isolate aggressive short-circuits instantly, preventing catastrophic component destruction. The ultrafast response time of 1 to 3 milliseconds ensures that low-fault currents common in PV systems are safely cleared before they can compromise your downstream inverters.
- This fuse minimizes internal energy waste with a highly efficient 2.1-watt maximum loss performance, resulting in significantly lower operating temperatures. This cool-running design prevents local heat build-up inside sealed outdoor enclosures, allowing engineers to maintain precise system sizing and protect adjacent electronics from thermal degradation.
- Built for worry-free global deployment, this solar fuse carries comprehensive regulatory approvals including UL Listed (Class NKCR2), IEC, CSA Certification, CE, and CCC markings. It satisfies rigorous international safety and environmental mandates, including RoHS compliance, ensuring your commercial installations easily clear strict electrical inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 1000 V
- Interrupting Capacity
- 50 kAIC
- Product Length
- 38 mm
- Product Width
- 11 mm
- Material
- Ceramic body
- Compliances
- RoHS Compliant
Amperage Rating20 A
Watt losses2.1 W
Product Height11 mm
Product Weight9.7 g
CertificationsUL Listed
ColorYellow
