Bussmann

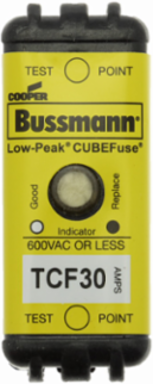

Bussmann TCF30 Time-Delay Fuse, 30A, 600 Vac/300 Vdc, 300 kAIC with Indicator, Finger Safe

Time-Delay Fuse, 30A, 600 Vac/300 Vdc, 300 kAIC with Indicator, Finger Safe
  • MPN: TCF30
  • UPC: 051712615037
  • PPN: BUS-TCF30

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$53.87/ EA

Description

Time-Delay Fuse, 30A, 600 Vac/300 Vdc, 300 kAIC with Indicator, Finger Safe

Specifications

General

EAN
5027590116978
Product Height
1.75 IN
Product Weight
.08 LB
Certifications
UL Listed
Product Length/Depth1.88 IN
Product Width.75 IN
CompliancesRoHS Compliant

Specifications

Fuse Indicator
With Indicator
Interrupt Rating
300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Color
Black body
Material Type
Glass filled PES
Frequency Rating Maximum
60 HZ
Type
Time-delay fuse
Amperage Rating Numeric
30 A
Class
Class CF
Application
Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
Special FeaturesFinger safe
Number Of ElementsDual
ConnectionBlade End
Amperage Rating30A
Fuse TypeTime-Delay, class CF
Used WithTCFH30N, CCP2-3-30CF
Frequency Rating Minimum50 HZ
Voltage Rating600 Vac, 300 Vdc
Voltage Rating Numeric600 V
