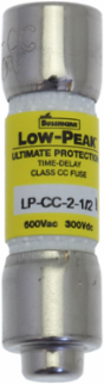

Bussmann LP-CC-2-1/2 Low Peak Fuse, 2-1/2A, 600 Vac, 1.5 Inch Height, Current-limiting
- MPN: LP-CC-2-1/2
- UPC: 051712180542
- PPN: BUS-LP-CC-2-1/2
CAD
$17.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Low Peak Fuse from Bussmann is engineered for specialized circuits and industrial control applications, offering a current-limiting and time-delay mechanism that enhances the performance of electrical systems. With an amperage rating of 2.5A and a voltage capacity of 600 Vac, it ensures reliable operation in higher load environments while its rejection style design contributes to safety by preventing unnecessary replacements. Measuring 1.5 inches in height and featuring ferrule connections, this Class CC fuse maintains a robust construction with a melamine tube, making it suitable for various demanding applications. The fuse is packaged in standard cartons of ten, making it a practical choice for professionals seeking dependable power distribution solutions.
Features
- The engineered 2.5-amp time-delay characteristic provides a minimum 12-second opening time at 200% rated current, allowing heavy inductive inrush currents from small motors and control transformers to pass safely. This eliminates frustrating downtime and unnecessary replacement costs caused by premature fuse clearing during equipment initialization.
- Featuring an exceptional 200 kAIC RMS symmetrical interrupting rating at 600VAC, this fuse provides ultimate overcurrent protection against catastrophic short circuits.
- This rejection-style fuse is explicitly dimensioned to fit standard Class CC fuse blocks, indicator fuse holders, and disconnect switches. The physical rejection tip prevents the accidental installation of lower-rated or non-rejection fuses, guaranteeing that your branch circuits maintain their precise, engineered safety profile.
Documentation & Downloads
Specifications
Additional
- Amperage
- 2-1/2A
- Response Time
- 12s at 200%
- Length
- 0.41 in.
- Width
- 0.41 in.
- Fuse Type
- Current-limiting, Time-delay
- Connection
- Ferrule end X ferrule end
- Fuse Indicator
- Non Indicating
- Application
- Specialized circuits and industrial control
Voltage600 Vac, 300 Vdc
Interrupt Rating200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
Height1.5 in.
Weight0.15 lb
Fuse ClassClass CC
Number of ElementsDual
MaterialMelamine tube
