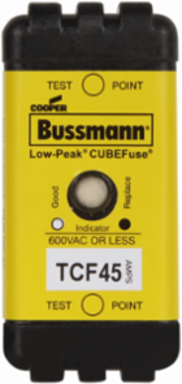

Bussman TCF45 Time-delay Fuse, 45A, 600 Vac/300 Vdc, 300 kAIC, Glass Filled PES, Finger Safe
Bussman TCF45 Time-delay Fuse, 45A, 600 Vac/300 Vdc, 300 kAIC, Glass Filled PES, Finger Safe
- MPN: TCF45
- UPC: 051712615068
- PPN: BUS-TCF45
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$82.25/ EA
Specifications
Specifications
- Fuse Indicator
- With Indicator
- Interrupt Rating
- 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
- Color
- Black body
- Response Time
- 10 s at 500%
- Amperage Rating
- 45A
- Mounting
- 35 mm Din Rail, chassis
- Type
- Time-delay fuse
- Amperage Rating Numeric
- 45 A
- Class
- Class CF
- Application
- Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
- Packaging Type
- Standard
Special FeaturesFinger safe
Number Of ElementsDual
ConnectionBlade End
Material TypeGlass filled PES
Frequency Rating Maximum60 HZ
Fuse TypeTime-Delay, class CF
Used WithTCFH60N, CCP2-3-60CF
Frequency Rating Minimum50 HZ
Voltage Rating600 Vac, 300 Vdc
Voltage Rating Numeric600 V
General
- UPC
- 051712615068
- Product Length/Depth
- 2.13 IN
- Product Width
- 1 IN
- Warranty
- Not Applicable
- Certifications
- UL Listed
EAN5027590184410
Product Height1.9 IN
Product Weight.17 LB
CompliancesCE Marked
