Bussman

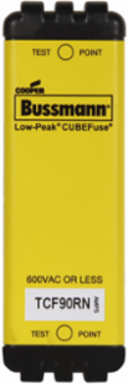

Bussman TCF90RN Time-Delay Fuse, 90A, 600V AC, 300V DC, Finger Safe, Glass Filled PES

Time-Delay Fuse, 90A, 600V AC, 300V DC, Finger Safe, Glass Filled PES
  • MPN: TCF90RN
  • UPC: 051712236188
  • PPN: BUS-TCF90RN

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$143.15/ EA

Specifications

Specifications

Fuse Indicator
Non Indicating
Interrupt Rating
300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Color
Black body
Response Time
10 s at 500%
Amperage Rating
90A
Mounting
35 mm Din Rail, chassis
Type
Time-delay fuse
Amperage Rating Numeric
90 A
Class
Class CF
Application
Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
Packaging Type
Standard
Special FeaturesFinger safe
Number Of ElementsDual
ConnectionBlade End
Material TypeGlass filled PES
Frequency Rating Maximum60 HZ
Fuse TypeTime-Delay, class CF
Used WithTCFH100N, CCP2-3-100CF
Frequency Rating Minimum50 HZ
Voltage Rating600 Vac, 300 Vdc
Voltage Rating Numeric600 V

General

UPC
051712236188
Product Height
2.125 IN
Product Weight
.284 LB
Compliances
CE Marked
Product Length/Depth3.01 IN
Product Width1 IN
WarrantyNot Applicable
CertificationsUL Listed
