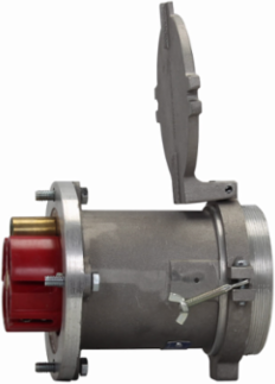

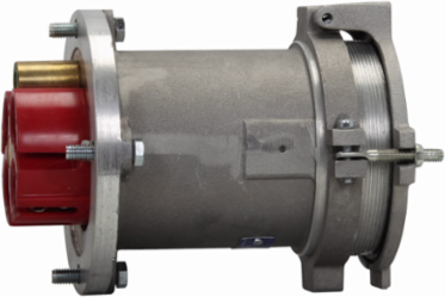

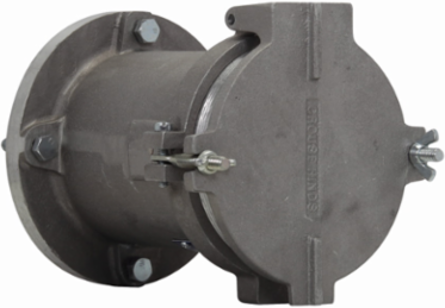

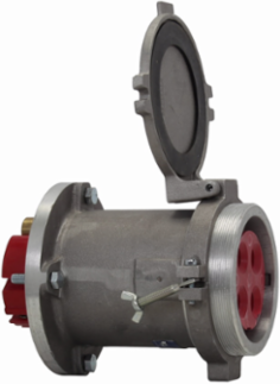

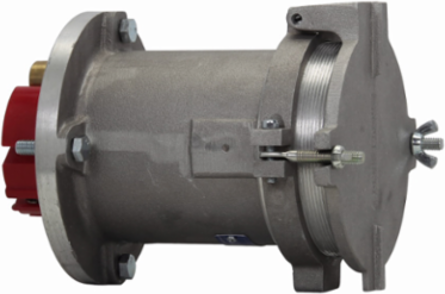

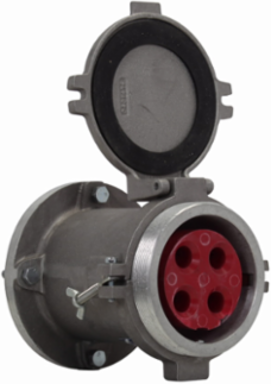

Crouse-Hinds ARL2041 Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
- MPN: ARL2041
- UPC: 782274251677
- PPN: CRH-ARL2041
CAD
$4743.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 200A
- Frequency rating
- 50 to 400 Hz
- Configuration
- Four-wire, four-pole
- Termination style
- Mechanical lug
- Material
- Copper-free aluminum
Voltage rating600 Vac/250 Vdc
Grounding typeStyle 1
Receptacle styleSpring door
Wire well size0.687"
Certifications And Compliances
- Area classification
- Ordinary/Non-Hazardous Locations
- NEMA Rating
- 3R
Standards typeNEC/CEC
General
- UPC
- 782274251677
- Product Height
- 6.63 in
- Product Weight
- 12.6 lb
Product Length/Depth7.5 in
Product Width6.63 in
