Crouse-Hinds

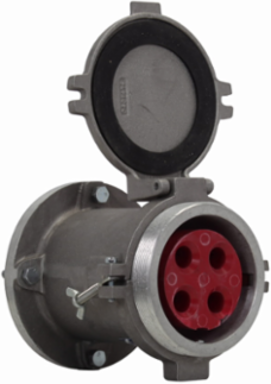

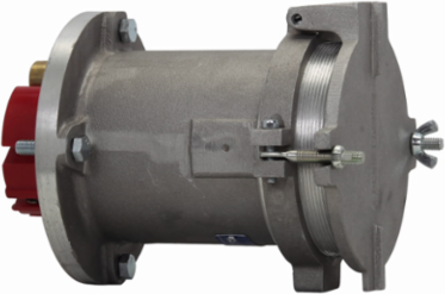

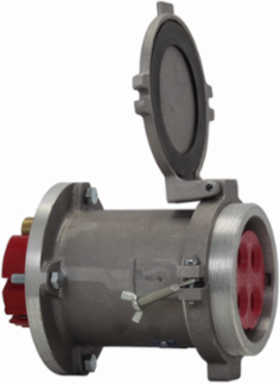

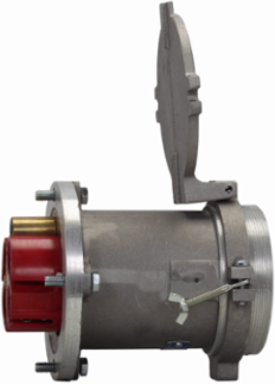

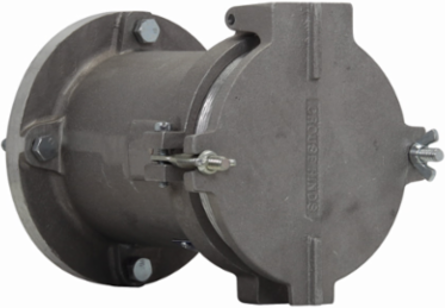

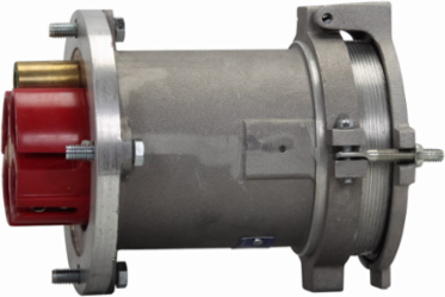

Crouse-Hinds ARL2042 Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"

Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"
  • MPN: ARL2042
  • UPC: 782274251097
  • PPN: CRH-ARL2042

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4404.40/ EA

Description

Eaton Crouse-Hinds series Arktite ARL receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 600 Vac/250 Vdc, 0.687"

Specifications

General

UPC
782274251097
Product Height
6.63 in
Product Weight
11.95 lb
Product Length/Depth7.5 in
Product Width6.63 in

Specifications

Amperage Rating
200A
Frequency rating
50 to 400 Hz
Configuration
Three-wire, four-pole
Termination style
Mechanical lug
Material
Copper-free aluminum
Voltage rating600 Vac/250 Vdc
Grounding typeStyle 2
Receptacle styleSpring door
Wire well size0.687"

Certifications And Compliances

Area classification
Ordinary/Non-Hazardous Locations
NEMA Rating
3R
Standards typeNEC/CEC
