Crouse-Hinds

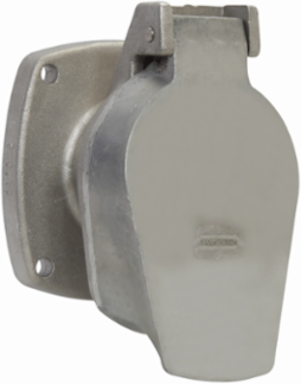

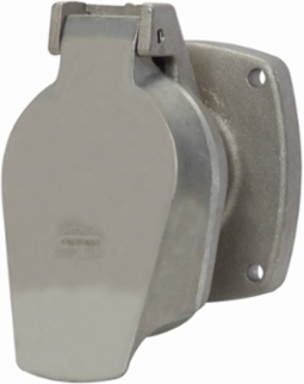

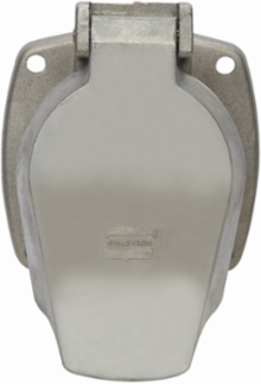

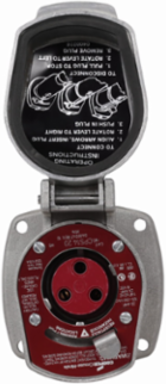

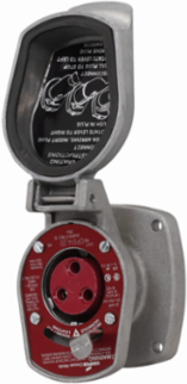

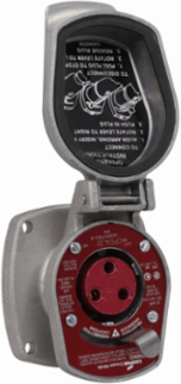

Crouse-Hinds CPS21 Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc

Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
  • MPN: CPS21
  • UPC: 782274179803
  • PPN: CRH-CPS21

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$489.63/ EA

Description

Eaton Crouse-Hinds series Arktite CPS receptacle body, 20A, Through feed, Two-wire, three-pole, Brass contacts, 60-400 Hz, 1 HP, Copper-free aluminum, Spring door, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc

Specifications

Specifications

Amperage Rating
20 A
Back box style
Through feed
Receptacle style
Spring door
Horsepower
1 hp
Material
Copper-free aluminum
Special features
Factory sealed
ConfigurationTwo-wire, three-pole
Trade size3/4"
Voltage rating125-250 Vac/18 Vdc
Frequency rating60-400 Hz
Contact materialBrass
TypeDelayed action circuit breaking

Certifications And Compliances

Area classification
Hazardous/Classified Locations
NEC hazardous rating
Class I, Division 1
Standards typeNEC/CEC

General

UPC
782274179803
Product Weight1.5 lb
