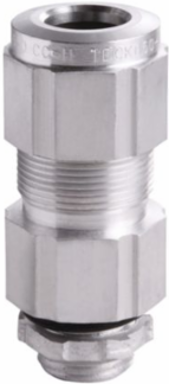

Crouse-Hinds TECK125 10S Armoured Cable Gland, Steel, 1-1/4" NPT, Outer Sheath 1.60-1.87"
- MPN: TECK125 10S
- UPC: 782274117331
- PPN: CRH-TECK125 10S
CAD
$52.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Armoured Cable Gland, Steel, 1-1/4" NPT, Outer Sheath 1.60-1.87"
Documentation & Downloads
Specifications
Key Specifications
| Protection type | General purpose |
|---|---|
| Gland type | Armoured |
| Thread Size | 1-1/4" |
| Armor (min/max) | 1.49-1.79" |
| Cable type | TECK armored |
|---|---|
| Material | Steel |
| Thread type | NPT |
| Outer sheath (min/max) | 1.60-1.87" |
Certifications And Compliances
| Area classification | Hazardous/Classified Locations |
|---|---|
| NEC hazardous rating | Class I, Division 1 |
| Standards type | NEC/CEC |
|---|---|
| NEMA Rating | 4 |
General
| UPC | 782274117331 |
|---|---|
| Product Height | 3.13 in |
| Product Weight | 2.75 lb |
| Product Length/Depth | 4.3 in |
|---|---|
| Product Width | 3.13 in |
