Cooper Wiring Devices CS6378 Locking Flanged Inlet with Lid, California Standard, 50A, 125V, Two-Pole, #10-6 AWG, Non-NEMA
- MPN: CS6378
- UPC: 040893683973
- PPN: COW-CS6378
CAD
$164.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

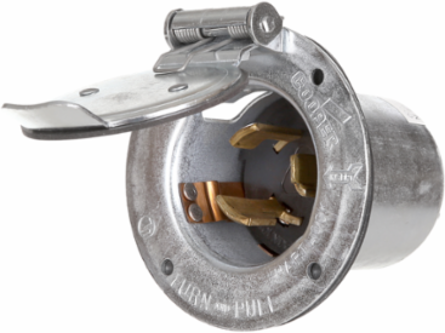

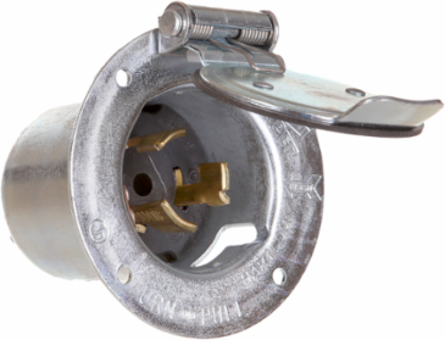

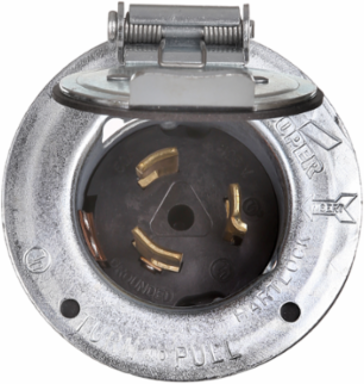

Eaton locking flanged inlet with lid, #10-6 AWG, 50A, Industrial, 125V, Steel, Non-NEMA, Two-pole, Three-wire, Nylon, California standard
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 50 A
- Number of Poles
- Two-pole
- Application
- Industrial
- Operating Temperature
- -40 to 105 °C (-40 to 221 °F)
- Torque Rating
- For #8 AWG: 40 lbf-inch. For #6 AWG: 45 lbf-inch
- Face/Body Material
- Glass filled nylon
- Color
- Steel
- Standard
- California standard
- NEMA Configuration
- Non-NEMA
Voltage Rating125 V
Number of WiresGrounding 3
Device GradeExtra heavy duty
Allowable Wire Size#10-6 AWG
MaterialGlass filled nylon
Contact MaterialZinc plated brass
Wiring MethodBack
Design TypeLocking flanged inlet with lid
