Documentation & Downloads

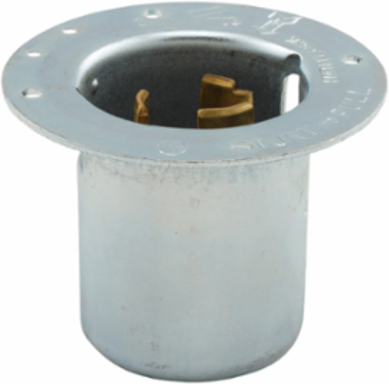

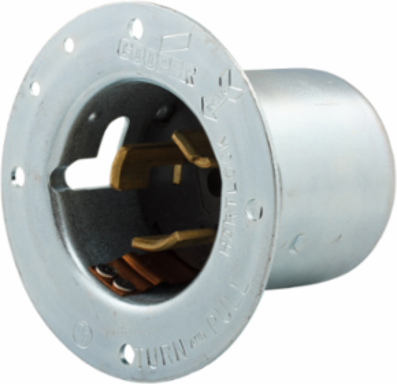

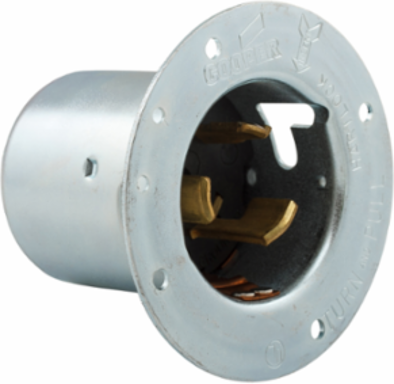

Cooper Wiring Devices CS6377 Locking Flanged Inlet, California Standard, 50A, 125V, Two-Pole, #10-6 AWG, Non-NEMA
- MPN: CS6377
- UPC: 040893683980
- PPN: COW-CS6377
CAD
$175.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Arrow Hart California standard locking flanged inlet, #10-6 AWG, 50A, Industrial, 125V, Steel, Non-NEMA, Two-pole, Three-wire, Nylon, California standard
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 50 A
- Number of Poles
- Two-pole
- Application
- Industrial
- Operating Temperature
- -40 to 105 °C (-40 to 221 °F)
- Torque Rating
- For #8 AWG: 40 lbf-inch. For #6 AWG: 45 lbf-inch
- Face/Body Material
- Glass filled nylon
- Wiring Method
- Back
- Design Type
- Locking flanged inlet
Voltage Rating125 V
Number of Wires3 Grounding
Device GradeExtra heavy duty
Allowable Wire Size#10-6 AWG
MaterialGlass filled nylon
ColorSteel
StandardCalifornia standard
NEMA ConfigurationNon-NEMA
