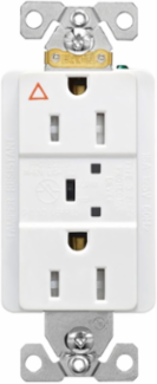

Cooper Wiring Devices TRIG5262WS Surge Protection Receptacle, TVSS, Isolated Ground, 15A, 125V, NEMA 5-15R, Duplex, White
- MPN: TRIG5262WS
- UPC: 032664756986
- PPN: COW-TRIG5262WS
CAD
$49.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton TVSS receptacle, IG, LED indicat and alarm, #14 - #10 AWG, 15A, Comm specif, Wall/flush mnt, Bk and sd wire, 840J, 2 recept, -40° to 60°C, Wht, Brs, Strght blade, Hi-impct resist thermpls/nylon, 5-15R, Dplx 756986 756986
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15A |
|---|---|
| Joules | 560J |
| Number Of Receptacles | 2 |
| Height | 4.2 in |
| Length | 1.62 in |
| Number of Wires | 3 |
| Torque Rating | 14 lbf-inch |
| Face/Body Material | High-impact resistant thermoplastic nylon |
| Style Type | Duplex |
| Mounting Method | Wall Flush |
| NEMA Configuration | 5-15R |
| Voltage Rating | 125 V |
|---|---|
| Operating Temperature | -40 to 60 °C |
| Special Features | LED indicators & alarm |
| Width | 1.7 in |
| Allowable Wire Size | #14-10 AWG |
| Number of Poles | Two-pole |
| Contact Material | Brass |
| Color | White |
| Wiring Method | Back and side |
| Application | Commercial |
| Receptacle Type | Two-pole, three-wire, grounding |
