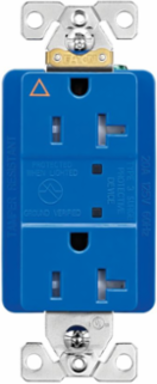

Eaton TR5360BLS Eaton TVSS receptacle — Color: Blue, Allowable Wire Size: #14-10 AWG, Amperage Rating: 20A, Application: Commercial, Device Grade: Commercial, Face/Body Material: Nylon High-impact resistant thermoplastic, Joules: 840J, Mounting Method: Flush Wall
- MPN: TR5360BLS
- UPC: 032664756351
- PPN: COW-TR5360BLS
CAD
$65.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton TVSS receptacle, LED indicat, #14 -#10 AWG, 20A, Comm specif, Wall/flush mnt, Bk and sd wire, 840J, 2 recept, -40° to 60°C, Blue, Brs, Strght blade, Hi-impct resist thermpls/nylon, 5-15R, Dplx 756351 756351
Features
- LED indicators
Specifications
Key Specifications
| Length | 1.62 in |
|---|---|
| Width | 1.7 in |
| Nom Product Type | TVSS receptacle |
| Type | TVSS surge protection receptacle |
| Voltage Rating | 125 V |
| Joules | 840J |
| NEMA Configuration | 5-20R |
| Wiring Method | Back and side |
| Number Of Receptacles | 2 |
| Torque Rating | 14 lbf-inch |
| Mounting Method | Flush Wall |
| Style Type | Duplex |
| Face/Body Material | Nylon High-impact resistant thermoplastic |
| Product Series | Surge Protection Receptacles |
| Height | 4.2 in |
|---|---|
| Weight | 0.28 lbs |
| Device Type | Straight blade |
| Amperage Rating | 20A |
| Contact Material | Brass |
| Allowable Wire Size | #14-10 AWG |
| Application | Commercial |
| Material | Thermoplastic |
| Operating Temperature | -40 to 60 °C |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Color | Blue |
| Receptacle Type | Two-pole, three-wire, grounding |
