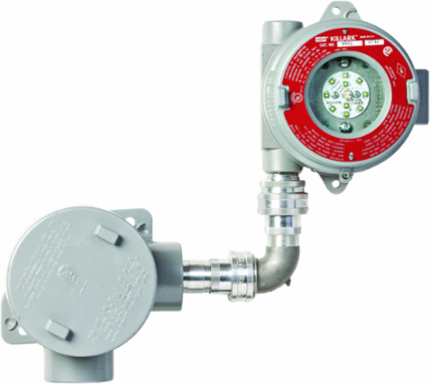

Killark EBSHK1030-RFSL Explosion Proof LED Emergency Light 10W 120-277VAC, 2000 lm, NEMA 4
- MPN: EBSHK1030-RFSL
- UPC: 783936083070
- PPN: HBL-EBSHK1030-RFSL
- UNSPSC: 39111710
CAD
$3197.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EBS 10W/30V DC HK Head with "L" Fittings
Features
- LED Heads provide clear crisp illumination at 5000° Kelvin
- LED Head L70 value 100,000 hours for minimal maintenance
- Two head models up to 500% brighter than competitive conventional units
- Enclosure Type 4 (NEMA 4) for wet and harsh locations
- Group B is standard when using EBSHK type heads
- Automatic Safety Disconnect – Removing main cover disconnects battery power
- Ambient Suitability 0°C to 45°C Battery Unit Heads to 55°
- Compact unit requires only two mounting points
- World Voltage 120-277 VAC 50/60Hz input Other Features
- High % of lumens maintained during 90 minute egress cycle
- EBSHK type heads are fully adjustable on unit or remote when ordered with RFSL Factory Sealed mounting kits
- EBSEL type heads are factory sealed on their EZ type mounting boxes
- Heads can be remote mounted over 300’ from battery unit
- Ni-Cad sealed batteries provide 90 minutes of illumination
- Integral base unit LED pilot light indicates AC power is present
- Choice of Integral or Remote Push-To-Test station to verify system operation
- Vapor Capsule to inhibit corrosion is standard with main enclosure unit
- Terminal Blocks identified for incoming and outgoing connections
- The EBS Series Explosion Proof LED Emergency Battery Backup System is designed for egress or anti-panic applications. This fixture is made with a cast copper-free aluminum housing and fixture heads that are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Key Specifications
- Country of Origin
- United States
- Optic Type
- Glass Globe - Clear
- Voltage Rating
- 120-277 VAC
- Finish Type
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- EBS 10W30VDC HK HEAD + "L" FTGS
- Harmonization Code
- 9405416000
- MSDS Flag
- No
- Lumen Range
- 0-2,000 lm
- Light Source
- LED
- Series
- EBS Series
- BOX SIZE
- (in)
- NAICS Code
- 3351222100
Lumens913
Special FeaturesThe EBS Series Explosion Proof LED Emergency Battery Backup System is designed for egress or anti-panic applications. This fixture is made with a cast copper-free aluminum housing and fixture heads that are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Wattage10 W
Frequency Rating50/60 Hz
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D201
Lumens Per Watt91.3
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936083070
Certifications
- EU RoHS Indicator
- Contact Manufacturer
