Lutron C-CBL-216-GR-1 EcoSystem Non-Plenum 2-Conductor Cable, 300/600 V, 1000 ft
- MPN: C-CBL-216-GR-1
- UPC: 027557547611
- PPN: LUT-C-CBL-216-GR-1
- UNSPSC: 39121438
CAD
$1814.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

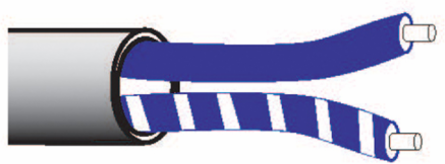

EcoSystem Non-Plenum 2-Conductor Cable, 300/600 V, 1000 ft
Features
- Non-plenum rated digital link sensor cable, CL2R for Class 2 applications. Internal conductors match EcoSystem device terminal and lead color scheme. Each conductor sized for direct connection to EcoSystem ballast and module terminals. Available in 1000 ft (304 m) +/- 10 percent spool. Dual rated to a maximum of 300 V or 600 V dependent upon application.
- Internal conductors match EcoSystem device terminal and lead color scheme.
- Each conductor sized for direct connection to EcoSystem ballast and module terminals.
- Three types of EcoSystem bus cable: Non-plenum bus cable (CL3R), for Class 2 applications -Non-plenum bus cable (TC), for Class 1 applications - Plenum bus cable (CL3P) for plenum Class 2 applications
- Non-plenum cable is rated to a maximum of 300V or 600V dependent upon application.
- Each offering is spooled to 1000 ft (305 m) and based upon industry standards of +/- 10% on all shipments.
- Non-plenum rated digital link sensor cable, CL2R for Class 2 applications
- Internal conductors match EcoSystem device terminal and lead color scheme
- Each conductor sized for direct connection to EcoSystem ballast and module terminals
- Available in 1000 ft (304 m) +/- 10 percent spool
- Dual rated to a maximum of 300 V or 600 V dependent upon application
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 13 A
- Color
- Gray
- Finish
- PVC
- Material
- Copper, PVC
- Size
- 7.62 mm x 300 m
- Type
- Cable
ApplicationLighting Control
Conductor Range16 AWG
InsulationPVC
Number Of Conductors2
Temperature Rating-4 to 221 F
Voltage Rating300/600 V
