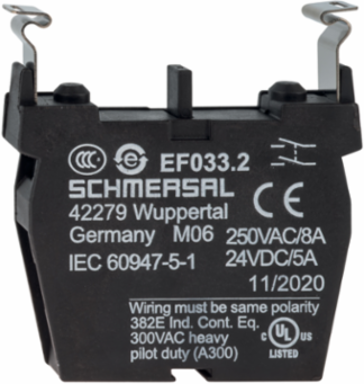

Schmersal 101006545 Contact Element EF - 46 mm Length, 2 NO, Rated Voltage 400 V
- MPN: 101006545
- PPN: SCM-101006545
CAD
$32.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Contact Element EF - 46 mm Length, 2 NO, Rated Voltage 400 V
Documentation & Downloads
Specifications
Key Specifications
- Length
- 46 mm
- Depth
- 60 mm
Width10 mm
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- Utilisation category DC-13
- 5 A
- Switching element
- Normally open contact (NO)
- Bounce duration, maximum
- 5 ms
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Suitable for low-voltages≥ 5 V / ≥ 3.2 mA
Switching principleSlow action
Switching frequency1,200 /h
Mechanical data - Dimensions
- Width
- 10 mm
Depth60 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
General data - Features
- Suitable for EMERGENCY-OFF
- Yes
Number of normally open (NO)2
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Slow action
- Contact labelling
- 33-34 | 43-44
VersionsContact element
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight22 g
Ambient conditions
- Degree of protection of the switch rooms
- IP40
- Ambient temperature
- -25 ... +80 °C
- Resistant to vibration
- Resistance to vibration: 20 g / 10…200 Hz
Degree of protection of clips or terminalsIP20
Restistance to shock110 g / 4 ms

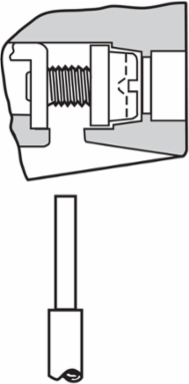

Mechanical data - Connection technique
- Cable section, minimum
- 0.5 mm², rigid | 0.5 mm², flexible
- Note (Cable section)
- All indications including the conductor ferrules.
Cable section, maximum2.5 mm², rigid | 1.5 mm², flexible
TerminationScrew terminals
Mechanical data
- Installation instructions
- pluggable
- Positive break travel
- 2 mm
- Note Bounce duration
- Bounce duration at an Actuating speed of 100mm/s
Mechanical life, minimum10,000,000 Operations
Contact opening3 mm
Mounting flange position2
Approvals - Standards
- Certificates
- cULus | CCC
