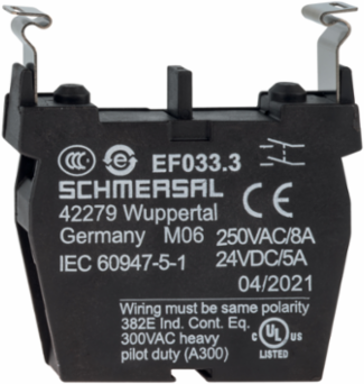

Schmersal 101006546 EF033.3 Contact Element, 10 mm Width, Normally Open, 400 V Insulation
- MPN: 101006546
- PPN: SCM-101006546
CAD
$33.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EF033.3 Contact Element, 10 mm Width, Normally Open, 400 V Insulation
Documentation & Downloads
Specifications
Key Specifications
| Length | 46 mm |
|---|---|
| Depth | 60 mm |
| Width | 10 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 8 A |
| Utilisation category DC-13 | 5 A |
| Switching element | Normally open contact (NO) |
| Bounce duration, maximum | 5 ms |
| Material of the contacts, electrical | Silver |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |
| Suitable for low-voltages | ≥ 5 V / ≥ 3.2 mA |
| Switching principle | Slow action |
| Switching frequency | 1,200 /h |
Mechanical data - Dimensions
| Width | 10 mm |
|---|
| Depth | 60 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 400 V |
|---|
General data - Features
| Suitable for EMERGENCY-OFF | Yes |
|---|
| Number of normally open (NO) | 2 |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Slow action |
| Contact labelling | 53-54 | 63-64 |
| Versions | Contact element |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 22 g |
Ambient conditions
| Degree of protection of the switch rooms | IP40 |
|---|---|
| Ambient temperature | -25 ... +80 °C |
| Resistant to vibration | Resistance to vibration: 20 g / 10…200 Hz |
| Degree of protection of clips or terminals | IP20 |
|---|---|
| Restistance to shock | 110 g / 4 ms |

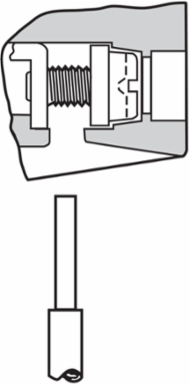

Mechanical data - Connection technique
| Cable section, minimum | 0.5 mm², rigid | 0.5 mm², flexible |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable section, maximum | 2.5 mm², rigid | 1.5 mm², flexible |
|---|---|
| Termination | Screw terminals |
Mechanical data
| Installation instructions | pluggable |
|---|---|
| Positive break travel | 2 mm |
| Note Bounce duration | Bounce duration at an Actuating speed of 100mm/s |
| Mechanical life, minimum | 10,000,000 Operations |
|---|---|
| Contact opening | 3 mm |
| Mounting flange position | 3 |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
