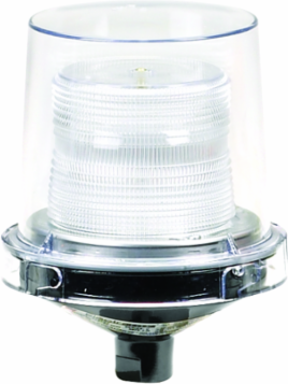

Federal Signal 225XST-I-024C Electraray Strobe Light, Hazardous Location, In-Rush Limited, UL and cUL CID2, 24VDC, Clear
- MPN: 225XST-I-024C
- UPC: 782979215639
- PPN: FDS-225XST-I-024C
- UNSPSC: 39111706
CAD
$1348.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The model 225XST is a hazardous location light with a black e-coated base; the inner fresnel lens is available in six colors. The clear polycarbonate outer dome can be removed quickly for easy access to inspect the unit or change the lamp.The 24 Vdc 225XST-I features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a visual signal is needed.
Features
- Available in 24 Vdc with Limited In-Rush
- Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000-hour, high-intensity strobe tube
- 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure (Dome up orientation)
- IP69K compliant
- CSA Certified
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 1.5 lbs
- Candela Effective Power
- 240
- Certification Listing
- CSA, UL, cUL, NSF
- Flash Pattern Type
- 1x Flash
- Lens Color
- Clear
- Operating Current Amps
- 0.7
- Operating Voltage
- 24 Vdc
- Environmental Rating
- Hazardous Location
- Product Life Cycle Status
- Completed
Height7.5 in
Body ColorBlack
Candela Power Peak580000
Diameter5.5 in (139.7 mm)
Flashes Per Minute80
Mount Type1/2-Inch NPT Pipe
Operating Temp.-40˚ to +104˚F (-40˚ to +40˚C)
Visual Signals Lens ColorClear
Enclosure RatingIP66, IP69K, Type 4X
